Same model may have multiple batches, images only for reference.

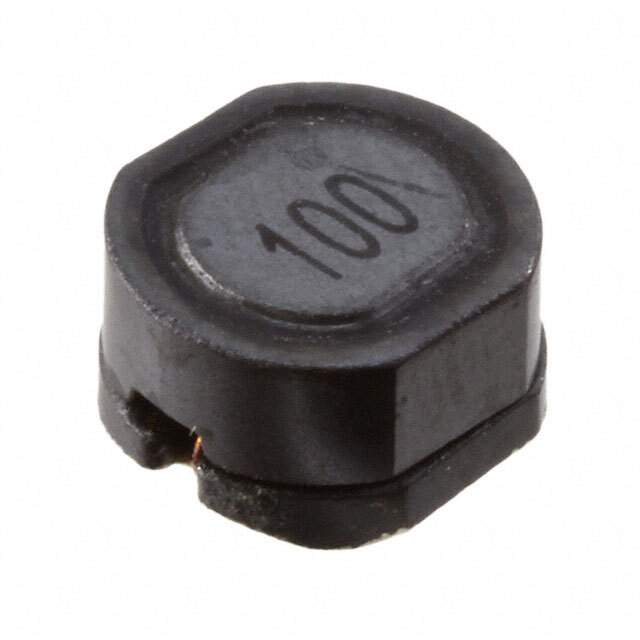

PM74SB-221K-RC Real Image
Same model may have multiple batches, images only for reference.

PM74SB-221K-RC

Part No PM74SB-221K-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 360MA 1.18OHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 360 mA 1.18Ohm Max Nonstandard
Datasheet
PM74SB-221K-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series PM74SB
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 360 mA
Current - Saturation (Isat) 550mA
Shielding Shielded
DC Resistance (DCR) 1.18Ohm Max
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.193" (4.90mm)
Base Product Number PM74SB
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
California Prop 65 Warning Information
Win Source Part Number 1349958-PM74SB-221K-RC
Ultra Librarian 3D Model Ultra Librarian PM74SB-221K-RC CAD Model

Description

The Bourns Inc. PM74SB series is a surface mount fixed inductor with a shielding feature. It is manufactured by Bourns Inc..

  • Type: Fixed inductor
  • Shielding: Shielding
  • Package: Tape and reel
  • Standard Package: 1,000
  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Inductance: 220 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 1.18Ohm Max
  • Current Rating (amps): 360 mA
  • Package/Case: Nonstandard
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.8000
