Same model may have multiple batches, images only for reference.

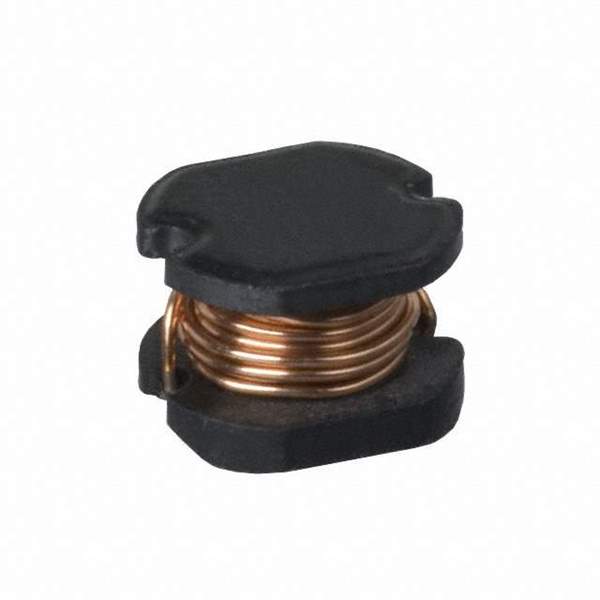

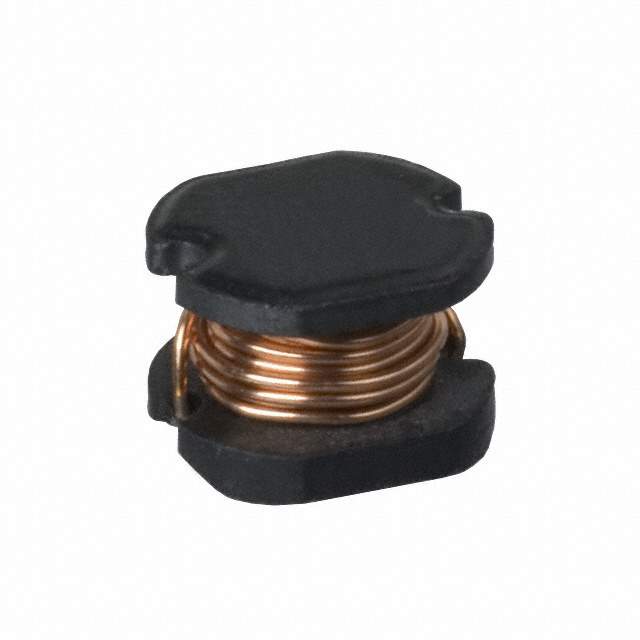

PM43-680K-RC Real Image
Same model may have multiple batches, images only for reference.

PM43-680K-RC

Part No PM43-680K-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 460MA 1.12OHM SMD / 68 µH Unshielded Drum Core, Wirewound Inductor 460 mA 1.12Ohm Nonstandard
Datasheet
PM43-680K-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 460 mA
Current - Saturation (Isat) 680mA
Shielding Unshielded
DC Resistance (DCR) 1.12Ohm
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number PM43
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number M8510DKR,M8510TR,M8510CT,PM43680KRC
Standard Package 1,500
Win Source Part Number 1328044-PM43-680K-RC
Ultra Librarian 3D Model Ultra Librarian PM43-680K-RC CAD Model

Description

The Bourns Inc. PM43-680K-RC is a fixed inductor with a packaging of reel - TR.

  • Core: Drum Core, Wirewound
  • Shielding: Unshielded
  • Size/Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • Inductance: 68 µH
  • Height - Seated (Max): 0.138" (3.50mm)
  • Standard Package: 1,500
  • Mounting Type: Surface Mount
  • Tolerance: ±10%
  • Material - Core: Ferrite
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency - Self-Resonant: 11MHz
  • DC Resistance (DCR): 1.12Ohm
  • Temperature Range: -40°C to 125°C
  • Case/Package: Nonstandard
  • ECCN: EAR99
  • Current Rating (Amps): 460mA
  • Inductance Frequency - Test: 1 kHz
  • REACH Status: REACH unaffected
  • HTSUS Code: 8504.50.4000
  • Other Part Numbers: M8510DKR, M8510TR, M8510CT, PM43680KRC
  • Base Product Number: PM43
  • ROHS3 Compliant: Yes
