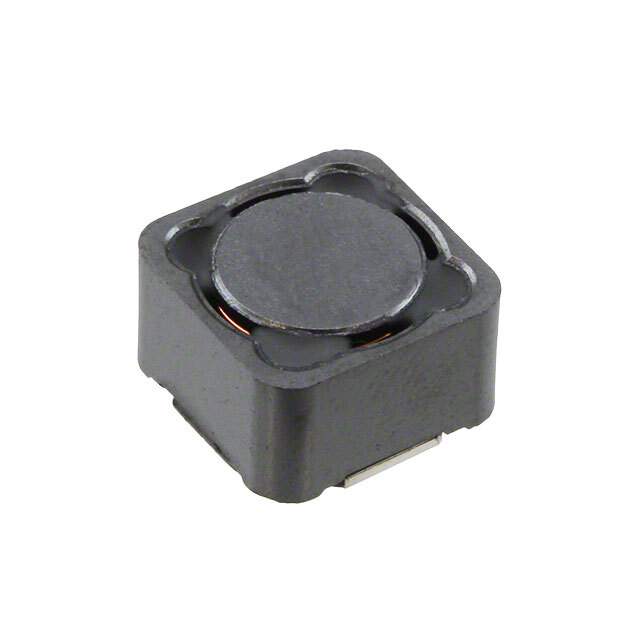

PM127SH-100M-RC Real Image
Same model may have multiple batches, images only for reference.

PM127SH-100M-RC

Part No PM127SH-100M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 6A 19.5 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 6 A 19.5mOhm Max Nonstandard
Datasheet
PM127SH-100M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 6.3A
Shielding Shielded
DC Resistance (DCR) 19.5mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number PM127SH
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number PM127SH-100M-RCDKR,PM127SH-100M-RCTR,PM127SH100MRC,PM127SH-100M-RCCT
Standard Package 400
Win Source Part Number 1327825-PM127SH-100M-RC
Ultra Librarian 3D Model Ultra Librarian PM127SH-100M-RC CAD Model

Description

The Bourns Inc. PM127SH-100M-RC is a fixed inductor.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Current Rating: 6A
  • Package: Non-standard
  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Reel
  • Pieces Per Package: 400
