Same model may have multiple batches, images only for reference.

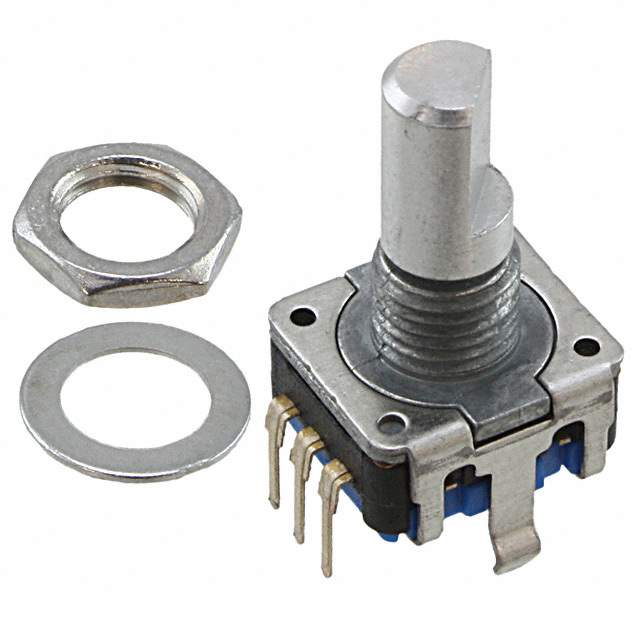

PEC11-4125F-S0018 Real Image
Same model may have multiple batches, images only for reference.

PEC11-4125F-S0018

Part No PEC11-4125F-S0018
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 18PPR / Rotary Encoder Mechanical 18 Quadrature (Incremental) Vertical
Datasheet
PEC11-4125F-S0018 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC11
Package Tray
Product Status Obsolete
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 18
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number PEC11
Standard Package 75
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1351169-PEC11-4125F-S0018
Ultra Librarian 3D Model Ultra Librarian PEC11-4125F-S0018 CAD Model

Description

The Bourns Inc. PEC11 series is an encoder with a quadrature (incremental) output type, 6mm dia flatted end actuator type, and a built-in switch.

  • Output Type: Quadrature (Incremental)
  • Actuator Type: 6mm Dia Flatted End
  • Switch: Built-in Switch
  • Package: Tray
  • Standard Package: 75
  • Pulses Per Revolution: 18
  • Detent: Yes
  • Rotational Life (Cycles Min): 30K
  • Mounting Type: Panel, PCB Through Hole
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Status: Obsolete
  • Manufacturer: Bourns Inc.
