MF-RX160/72-0

Name: MF-RX160/72-0
Brand: Bourns Inc.
SKU: 1334908
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MF-RX160/72-0
Manufacturer	Bourns Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 72V 1.6A RADIAL / Polymeric PTC Resettable Fuse 72V 1.6 A Ih Through Hole Radial, Disc
Datasheet	MF-RX160/72-0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Bourns Inc.
Packaging	Bulk
Type	Polymeric
Voltage - Max	72V
Current - Max	40 A
Current - Hold (Ih) (Max)	1.6 A
Current - Trip (It)	3.2 A
Time to Trip	11.4 s
Resistance - Initial (Ri) (Min)	90 mOhms
Resistance - Post Trip (R1) (Max)	220 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Through Hole
Case / Package	Radial, Disc
Size / Dimension	0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max)	0.839" (21.30mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
Base Product Number	MF-RX
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	MF-RX160/72-ND,MFRX160720,MF-RX160/72
Standard Package	500
Win Source Part Number	1334908-MF-RX160/72-0
Ultra Librarian 3D Model	Ultra Librarian MF-RX160/72-0 CAD Model

Alternative Products

Description

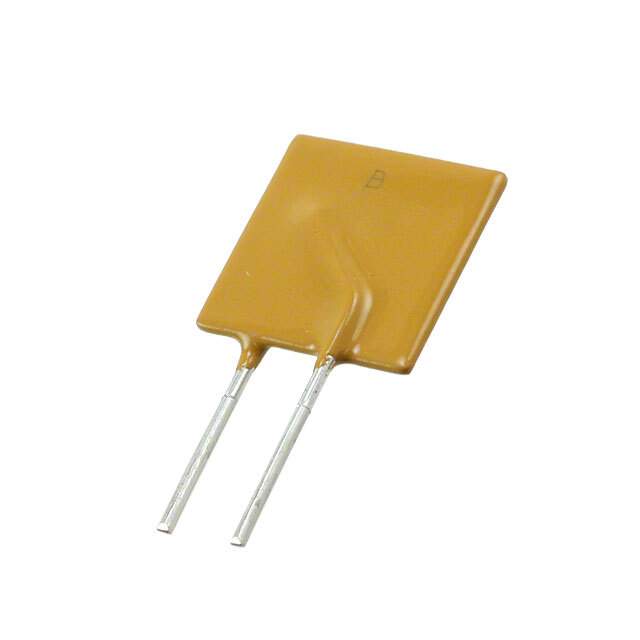

The Bourns Inc. 1334908-MF-RX160/72-0 is a polymeric type PTC resettable fuse.

Size / Dimension: 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height-Seated (Max): 0.839" (21.30mm)
Standard Package: 500
Mounting Type: Through Hole
Voltage - Max: 72V
Current - Max: 40A
Current - Hold (Ih) (Max): 1.6A
Current - Trip (It): 3.2A
Time to Trip: 11.4s
Resistance - Initial (Ri) (Min): 90 mOhms
Resistance - Post Trip (R1) (Max): 220 mOhms
ECCN: EAR99
MSL Level: 1 (Unlimited)
REACH: Unaffected
HTSUS: 8533.40.8070
ROHS3 Compliant: Yes
Approval Agencies: cURus, TUV
