Same model may have multiple batches, images only for reference.

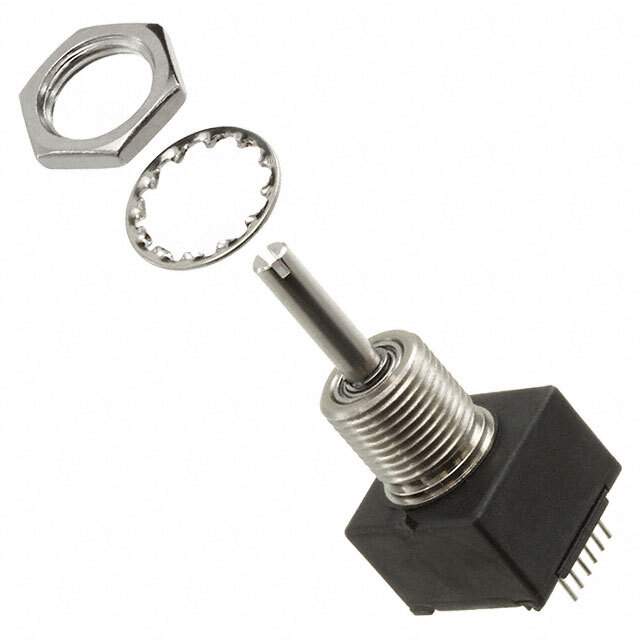

ES14A0D-E28-L064N Real Image
Same model may have multiple batches, images only for reference.

ES14A0D-E28-L064N

Part No ES14A0D-E28-L064N
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER OPTICAL 64PPR / Rotary Encoder Optical 64 Quadrature (Incremental) User Selectable
Datasheet
ES14A0D-E28-L064N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series ES14
Package Tube
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 64
Voltage - Supply 5V
Actuator Type Shaft
Detent No
Built in Switch No
Mounting Type Panel Mount
Orientation User Selectable
Termination Style PC Pin
Rotational Life (Cycles Min) 100M
Base Product Number ES14A0D
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 1339448-ES14A0D-E28-L064N
Ultra Librarian 3D Model Ultra Librarian ES14A0D-E28-L064N CAD Model

Description

The ES14A0D-E28-L064N is an optical encoder designed for use in various applications including robotics, automation, and motion control.

  • Output Type: Quadrature (Incremental)
  • Actuator Type: Shaft
  • Pulses per Revolution: 64
  • Rotational Life (cycles min): 100M
  • Voltage Supply: 5V
  • Mounting Type: Panel Mount
  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 25
  • REACH: Affected
  • HTSUS: 8543.70.4500
  • RoHS: Compliant
