Same model may have multiple batches, images only for reference.

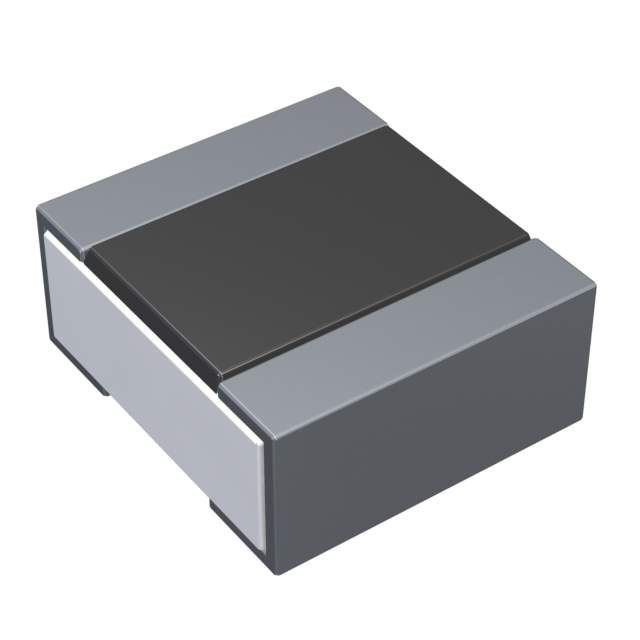

CR0402-JW-103GLF Real Image
Same model may have multiple batches, images only for reference.

CR0402-JW-103GLF

Part No CR0402-JW-103GLF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 5% 1/16W 0402 / 10 kOhms ±5% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Datasheet
CR0402-JW-103GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number CR0402
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CR0402-JW-103GLF-ND,CR0402JW103GLF,CR0402-JW-103GLFTR,CR0402-JW-103GLFDKR,CR0402-JW-103GLFCT
Standard Package 10,000
Win Source Part Number 1326143-CR0402-JW-103GLF
Ultra Librarian 3D Model Ultra Librarian CR0402-JW-103GLF CAD Model

Description

The CR0402-JW-103GLF is a chip resistor surface mount electronic component manufactured by Bourns Inc.

  • Resistance: 10 kOhms
  • Tolerance: ±5%
  • Composition: Thick film
  • Size/Dimension: 0.039 inches L x 0.020 inches W (1.00mm x 0.50mm)
  • Height Seated (max): 0.016 inches (0.40mm)
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
