Same model may have multiple batches, images only for reference.

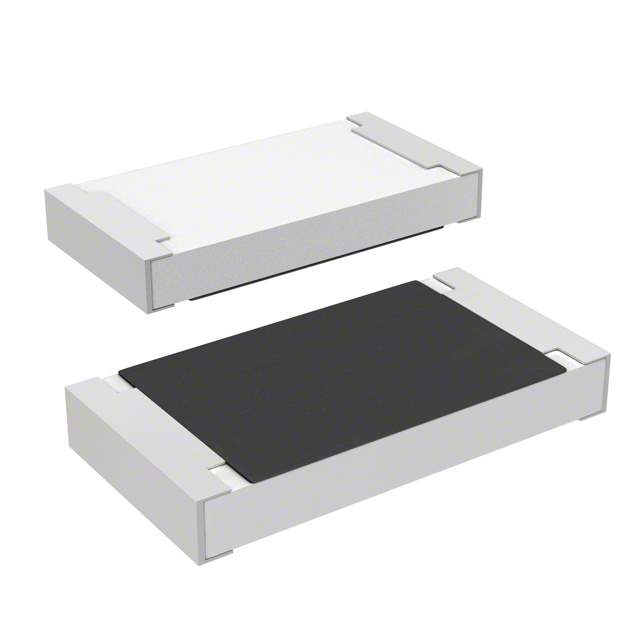

CHV2010-FX-1005ELF Real Image
Same model may have multiple batches, images only for reference.

CHV2010-FX-1005ELF

Part No CHV2010-FX-1005ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 10M OHM 1% 1/2W 2010 / 10 MOhms ±1% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) High Voltage Thick Film
Datasheet
CHV2010-FX-1005ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 10 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2010 (5025 Metric)
Supplier Device Package 2010
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number CHV2010
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 2266-CHV2010-FX-1005ELF,CHV2010-FX-1005ELFCT,CHV2010-FX-1005ELFDKR,CHV2010-FX-1005ELFTR
Standard Package 4,000
Win Source Part Number 1326140-CHV2010-FX-1005ELF
Ultra Librarian 3D Model Ultra Librarian CHV2010-FX-1005ELF CAD Model

Description

The Bourns Inc. CHV2010-FX-1005ELF is a chip resistor designed for surface mount applications.

  • Resistance: 10 mOhms
  • Tolerance: ±1%
  • Power Rating: 0.5W
  • Length: 0.197 inches (5.00 mm)
  • Width: 0.098 inches (2.50 mm)
  • Height: 0.028 inches (0.70 mm)
  • Composition: Thick film
  • Terminations: Two
  • Temperature Range: -55°C to 155°C
  • Packaging: Reel
  • ROHS3 Compliant: Yes
