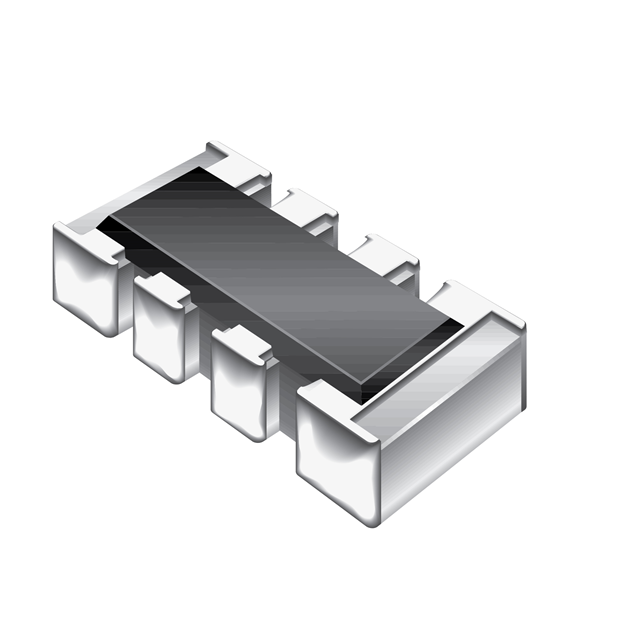

CAY16A-1001F4LF Real Image
Same model may have multiple batches, images only for reference.

CAY16A-1001F4LF

Part No CAY16A-1001F4LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARR 4 RES 1K OHM 1206 / 1k Ohm ±1% 63mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
CAY16A-1001F4LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series CAY16A-LF
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±1%
Number of Resistors 4
Number of Pins 8
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric) , Convex, Long Side Terminals
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1349948-CAY16A-1001F4LF
Ultra Librarian 3D Model Ultra Librarian CAY16A-1001F4LF CAD Model

Description

The Bourns CAY16A-LF series is a resistor network designed for surface mount applications. It is manufactured by Bourns.

  • Resistor Configuration: Four isolated resistors
  • Resistance: 1kOhm
  • Tolerance: ±1%
  • Power per Element: 63mW
  • Temperature Coefficient: ±200ppm/°C
  • Package: Tape & reel
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.024" (0.60mm) when seated
  • Applications: Automotive AEC-Q200
