Same model may have multiple batches, images only for reference.

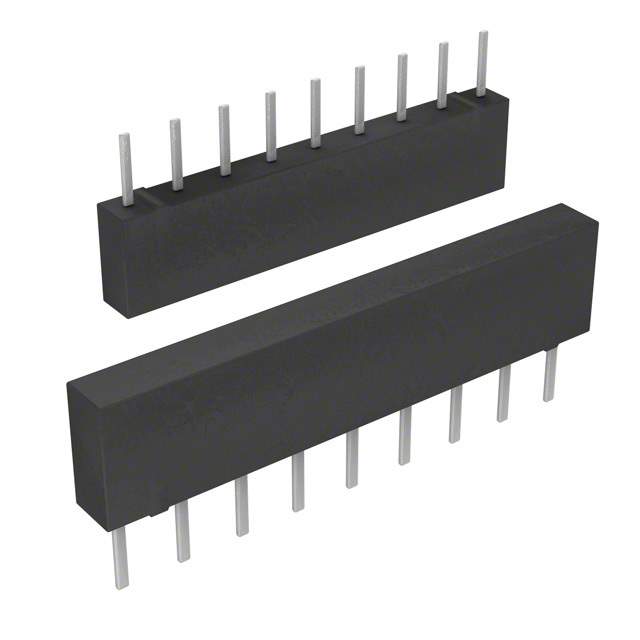

4309R-101-103LF Real Image
Same model may have multiple batches, images only for reference.

4309R-101-103LF

Part No 4309R-101-103LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 10K OHM 9SIP / 10k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4309R-101-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Bourns Inc.
Packaging Tube
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 8
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Through Hole
Case / Package 9-SIP
Supplier Device Package 9-SIP
Size / Dimension 0.884" L x 0.085" W (22.45mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4309R
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
Other Part Number 4309R101103LF
Standard Package 22
Win Source Part Number 1328301-4309R-101-103LF
Ultra Librarian 3D Model Ultra Librarian 4309R-101-103LF CAD Model

Description

The 4309R-101-103LF is a resistor network manufactured by Bourns Inc.

  • Supply and Demand: Balanced
  • Type: Bussed
  • Resistance: 10k Ohms
  • Tolerance: ±2%
  • Number of Resistors: 8
  • Package: 9-SIP
  • Power Per Element: 200mW
