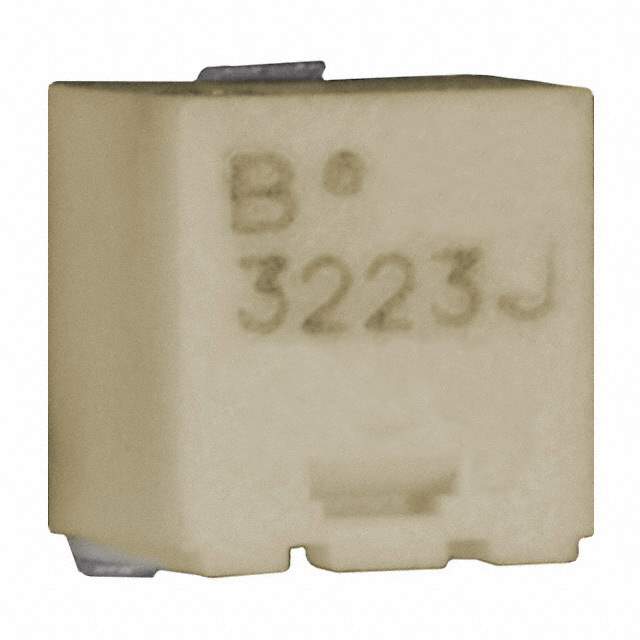

3223J-1-202E Real Image
Same model may have multiple batches, images only for reference.

3223J-1-202E

Part No 3223J-1-202E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2KOHM 0.125W J LEAD SIDE / 2 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
Datasheet
3223J-1-202E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 2 kOhms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm)
Base Product Number 3223J
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3223J1202E,3223J-1-202ETR,3223J-1-202ECT,3223J-1-202EDKR
Standard Package 500
Win Source Part Number 1325959-3223J-1-202E
Ultra Librarian 3D Model Ultra Librarian 3223J-1-202E CAD Model

Description

The Bourns Inc. 3223J series trimmer potentiometer is a high-quality component that is designed for use in a variety of electronic devices.

  • Resistance: 2 kOhms
  • Power Rating: 0.125W
  • Size/Dimension: Rectangular - 0.154" x 0.125" face (3.90mm x 3.18mm)
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Resistive Material: Cermet
  • Adjustment Type: Side Adjustment
  • Number of Turns: 11
  • ROHS3: Compliant
