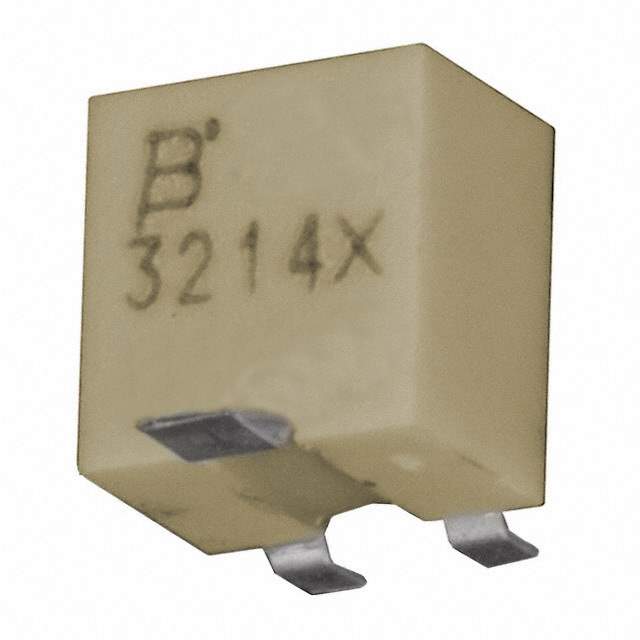

Same model may have multiple batches, images only for reference.

3214X-1-502E

Name: 3214X-1-502E
Brand: Bourns Inc.
SKU: 1325848
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3214X-1-502E
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 5K OHM 0.25W GW TOP ADJ / 5 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Top Adjustment
Datasheet	3214X-1-502E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Resistance	5 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	5
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	Surface Mount
Termination Style	Gull Wing
Size / Dimension	Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number	3214X
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Part Number	3214X-1-502ECT,3214X-1-502EDKR,3214X1502E,3214X-1-502ETR
Standard Package	200
Win Source Part Number	1325848-3214X-1-502E
Ultra Librarian 3D Model	Ultra Librarian 3214X-1-502E CAD Model

Alternative Products

Description

The Bourns Inc. 3214X-1-502E is a surface mount trimmer potentiometer that is designed to be used in a variety of applications, including audio equipment, test and measurement equipment, and telecommunications equipment.

Resistance: 5 kOhms
Tolerance: ±10%
Power: 0.25W
Resistive Material: Cermet
Temperature Coefficient: ±100ppm/°C
Number of Turns: 5
Adjustment Type: Top-Adjustable
Packaging: Reel
Termination Style: Gull Wing
ROHS3 Compliant: Yes
