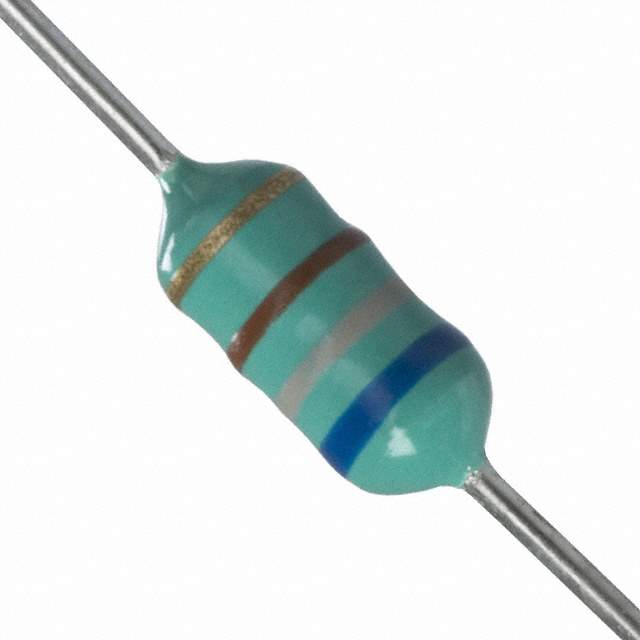

Same model may have multiple batches, images only for reference.

78F681J-RC

Name: 78F681J-RC
Brand: Bourns Inc.
SKU: 424493
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	78F681J-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 680UH 68MA 25.3 OHM TH
Datasheet	78F681J-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Packaging	Bulk
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	680μH
Tolerance	±5%
Current Rating	68mA
DC Resistance (DCR)	25.3 Ohm Max
Q @ Freq	60 @ 790kHz
Frequency - Self Resonant	2MHz
Temperature Range - Operating	-55°C to 105°C
Frequency - Test	790kHz
Mounting	Through Hole
Case / Package	Axial
Dimension	0.110" Dia x 0.280" L (2.79mm x 7.11mm)
Win Source Part Number	1010121-78F681J-RC
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 78F681J-RC CAD Model

Alternative Products

Description

The Bourns Inc. 78F681J-RC wirewound inductor from Bourns Inc. is a high-quality component that provides excellent performance and reliability.

Current Rating: 68mA
Inductance: 680μH
Mounting: Through-hole
Packaging: Bulk
Tolerance: ±5%
Core Material: Ferrite
Q @ Freq: 60 @ 790kHz
Self-Resonant Frequency: 2MHz
Test Frequency: 790kHz
Category: Inductors, coils, and chokes
DC Resistance (DCR): 25.3 Ohm max
Status: Active
Temperature Range: -55°C to 105°C
Supply and Demand Status: Balanced
Case/Package: Axial
Dimensions: 0.110" Dia x 0.280" L (2.79mm x 7.11mm)
