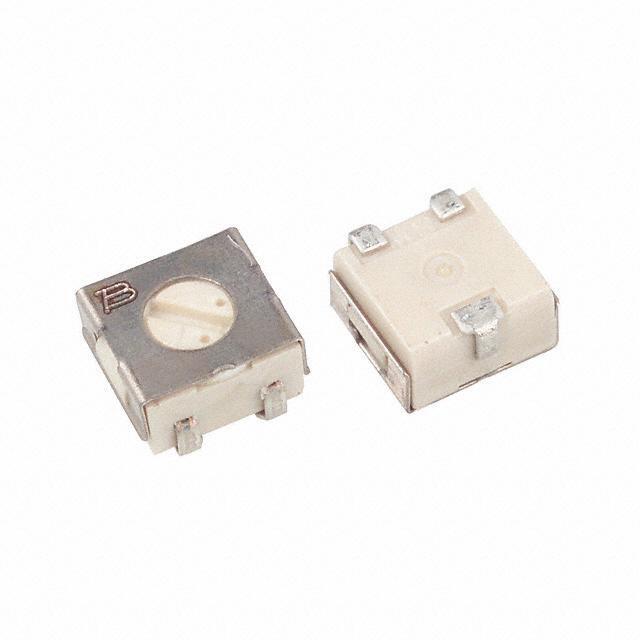

7814J-1-051E Bourns Inc.
Same model may have multiple batches, images only for reference.

7814J-1-051E

Part No 7814J-1-051E
Manufacturer Bourns Inc.
Catalog DIP Switches
Description SMD 4 mm Square Sealed Rotary Switch | SWITCH ROTARY DIP SPDT 100MA 16V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Bourns Inc.
Packaging Reel
Circuit SPDT
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 16VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Height Above Board 0.100" (2.54mm)
Mounting Style SMD
Termination Style J Lead
Washable No
Temperature Range - Operating -55°C ~ 125°C
Length 0.177" (4.50mm)
Mechanical Life 50 Cycles
Family Part Number 7814J
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133694-7814J-1-051E
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7814J-1-051E CAD Model

Description

The 7814J-1-051E switch from Bourns Inc. is a SPDT circuit type with a rotary actuator type. Bourns Inc. manufactures this product.

  • Circuit Type: SPDT
  • Actuator Type: Rotary
  • Voltage Rating: 16VAC/DC
  • Current Rating: 100mA
  • Height Above Board: 0.100" (2.54mm)
  • Length: 0.177" (4.50mm)
  • Package: Reel
  • Temperature Range: -55°C to 125°C
  • Application: Electronic devices that require switches
