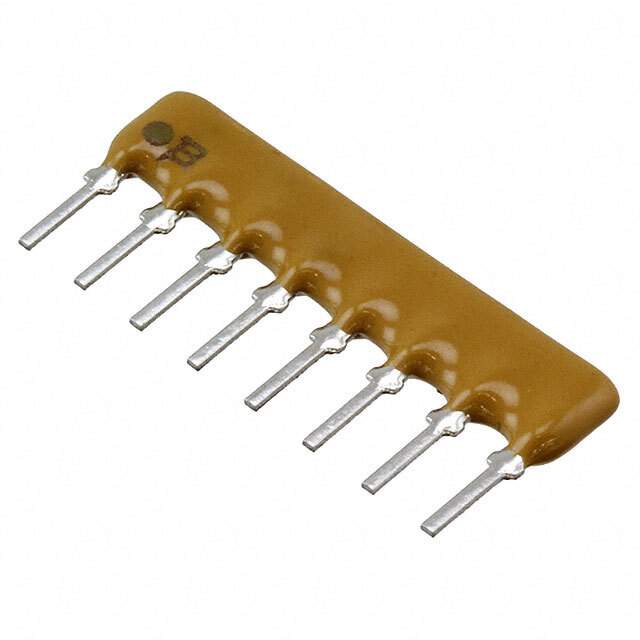

4608X-101-105LF Real Image
Same model may have multiple batches, images only for reference.

4608X-101-105LF

Part No 4608X-101-105LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 7 RES 1M OHM 8SIP / 1M Ohm ±2% 200mW Power Per Element Bussed 7 Resistor Network/Array ±100ppm/°C 8-SIP
Datasheet
4608X-101-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 1M
Tolerance ±2%
Number of Resistors 7
Number of Pins 8
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 8-SIP
Supplier Device Package 8-SIP
Dimension 0.798" L x 0.098" W (20.27mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4608X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4608X101105LF,2266-4608X-101-105LF,4608X-1-105LF,4608X-101-105LF-ND
Standard Package 200
Win Source Part Number 1159462-4608X-101-105LF
Ultra Librarian 3D Model Ultra Librarian 4608X-101-105LF CAD Model

Description

The Bourns 4600X series is a resistor network designed for through-hole applications.

  • Resistors: Seven bussed resistors
  • Resistance: 1M Ohms
  • Tolerance: ±2%
  • Power per Element: 200mW
  • Temperature Coefficient: ±100ppm/°C
  • Package: Bulk
  • Size: 0.798" L x 0.098" W (20.27mm x 2.49mm)
  • Seated Height: 0.200" (5.08mm)
