Same model may have multiple batches, images only for reference.

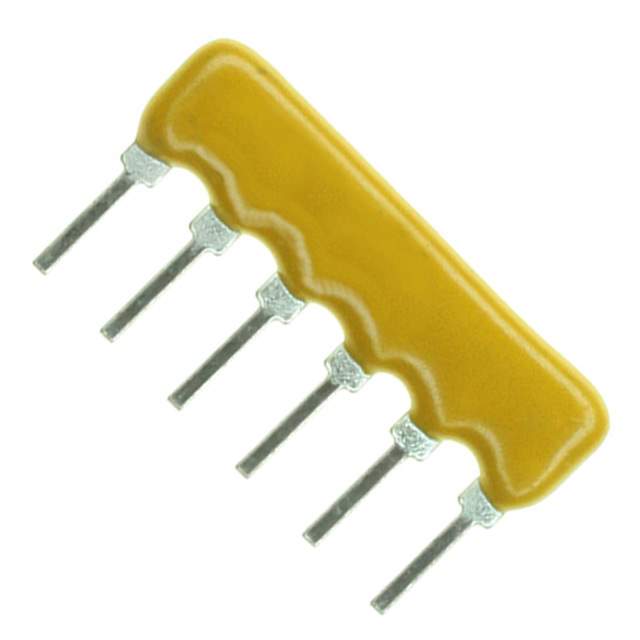

4606X-102-223LF Real Image
Same model may have multiple batches, images only for reference.

4606X-102-223LF

Part No 4606X-102-223LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 3 RES 22K OHM 6SIP / 22k Ohm ±2% 300mW Power Per Element Isolated 3 Resistor Network/Array ±100ppm/°C 6-SIP
Datasheet
4606X-102-223LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Isolated
Resistance (Ohms) 22k
Tolerance ±2%
Number of Resistors 3
Number of Pins 6
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Dimension 0.598" L x 0.098" W (15.19mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4606X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4606X102223LF,4606X-102-223LF-ND,4606X-2-223LF
Standard Package 200
Win Source Part Number 1038746-4606X-102-223LF
Ultra Librarian 3D Model Ultra Librarian 4606X-102-223LF CAD Model

Description

The 4606X-102-223LF is a resistor network array from Bourns Inc.

  • Resistance: 22k ohms
  • Tolerance: ±2%
  • Circuit Type: isolated
  • Resistors: three
  • Power per Element: 300mW
  • Package: 6-SIP
  • Mounting: through-hole technology
  • Temperature Range: -55°C to 125°C
