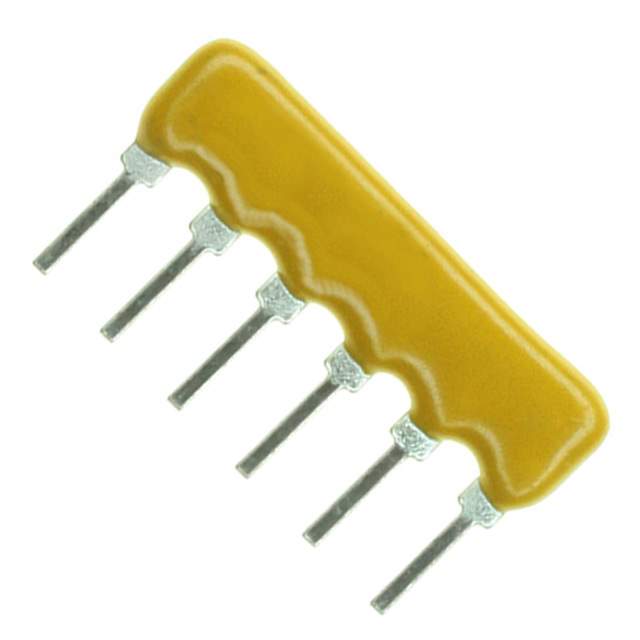

4606X-102-100LF Real Image
Same model may have multiple batches, images only for reference.

4606X-102-100LF

Part No 4606X-102-100LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 3 RES 10 OHM 6SIP / 10 Ohm ±1Ohm 300mW Power Per Element Isolated 3 Resistor Network/Array ±250ppm/°C 6-SIP
Datasheet
4606X-102-100LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Isolated
Resistance (Ohms) 10
Tolerance ±1Ohm
Number of Resistors 3
Number of Pins 6
Power Per Element 300mW
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Dimension 0.598" L x 0.098" W (15.19mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4606X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Standard Package 1,000
Win Source Part Number 985535-4606X-102-100LF
Ultra Librarian 3D Model Ultra Librarian 4606X-102-100LF CAD Model

Description

The Bourns Inc. 985535-4606X-102-100LF is a resistor network array designed for use in various electronic circuits.

  • Package: 6-SIP
  • Circuits: three isolated circuits
  • Power per Element: 300mW
  • Resistance: 10 Ohms
  • Tolerance: ±1 Ohm
  • Temperature Coefficient: ±250ppm/°C
  • Height: 0.200" (5.08mm)
  • Dimension: 0.598" L x 0.098" W (15.19mm x 2.49mm)
  • Operating Temperature Range: -55°C to 125°C
  • Supplied in: bulk
  • Standard Package: 1,000
