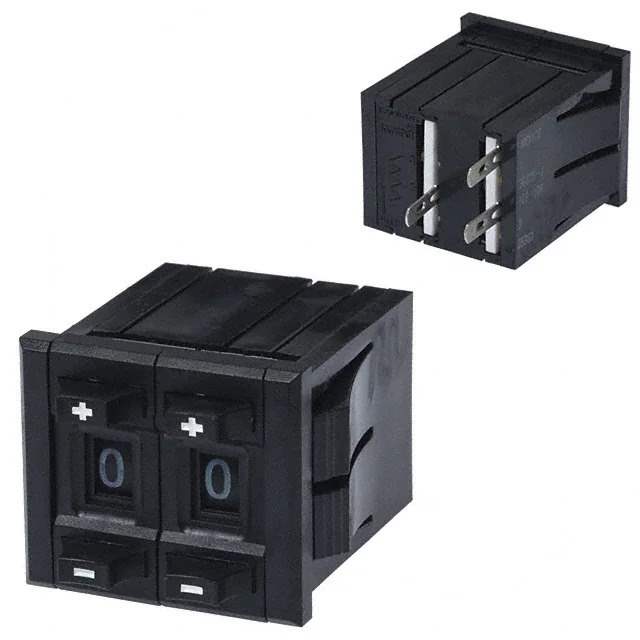

3682S-1-502L Real Image
Same model may have multiple batches, images only for reference.

3682S-1-502L

Part No 3682S-1-502L
Manufacturer Bourns Inc.
Catalog Misc Products
Description VALUE DISPLAY POT 5K 2W PNL MT
Datasheet
3682S-1-502L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Value Display Potentiometers
Mfr Bourns Inc.
Series 3680
Package Bulk
Product Status Active
Resistance 5 kOhms
Power (Watts) 2 W
Tolerance ±3%
Adjustment Type Push Button
Number of Characters 2
Mounting Type Panel Mount
Size / Dimension Square - 1.050" L x 0.930" W x 1.050" H (26.67mm x 23.62mm x 26.67mm)
Termination Style Solder Lug
Base Product Number 3682S
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 846850-3682S-1-502L
Ultra Librarian 3D Model Ultra Librarian 3682S-1-502L CAD Model

Description

The 3680 series is a value display potentiometer with a solder lug termination style.

  • Size: 1.050" L x 0.930" W x 1.050" H (26.67mm x 23.62mm x 26.67mm)
  • Power Rating: 2W
  • Tolerance: ±3%
  • Adjustment Type: Push Button
  • Resistance Value: 5k ohms
  • Mounting Type: Panel Mount
  • Package: Bulk
  • Product Status: Active
  • Manufacturer: Bourns Inc.
  • Category: Potentiometers, Variable Resistors - Value Display Potentiometers
