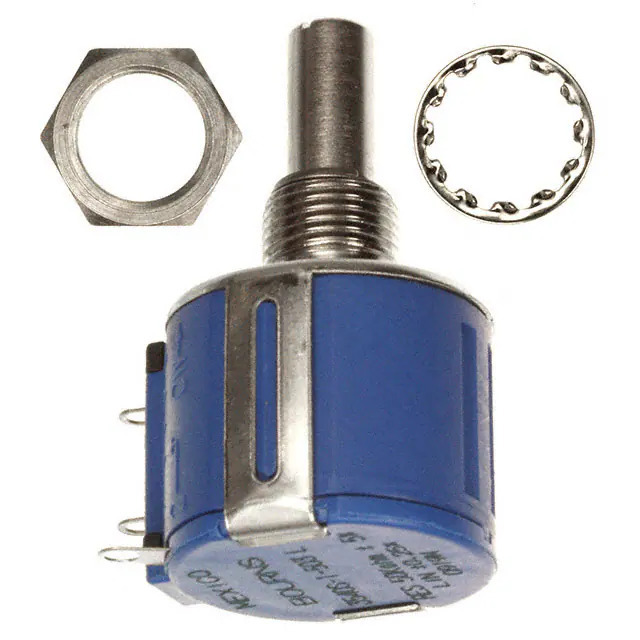

Same model may have multiple batches, images only for reference.

3540S-1-102L

Name: 3540S-1-102L
Brand: Bourns Inc.
SKU: 1375024
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3540S-1-102L
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	POT 1K OHM 2W WIREWOUND LINEAR / 1k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet	3540S-1-102L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3540
Package	Tray
Product Status	Active
Resistance (Ohms)	1k
Tolerance	±5%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Features	-
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.812" (20.63mm)
Actuator Diameter	0.2497" (6.34mm)
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Size - Body	Round - 0.875" Dia (22.23mm)
Base Product Number	3540S
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
Win Source Part Number	1375024-3540S-1-102L
Ultra Librarian 3D Model	Ultra Librarian 3540S-1-102L CAD Model

Alternative Products

Description

The 3540 series rotary potentiometer is a panel mount variable resistor manufactured by Bourns Inc.

Resistance: 1k Ohms
Power (Watts): 2W
Tolerance: ±5%
Temperature Coefficient: ±50ppm/°C
Actuator Type: Slotted
Termination Style: Solder Lug
Mounting Type: Panel Mount
Size - Body: Round - 0.875" (22.23mm)
Series: 3540S
REACH Status: Affected
ECCN: EAR99
