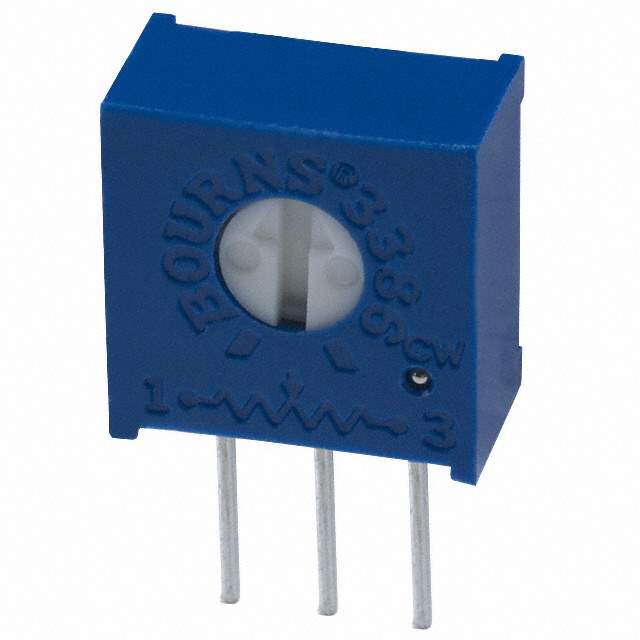

3386W-1-504LF Real Image
Same model may have multiple batches, images only for reference.

3386W-1-504LF

Part No 3386W-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.5W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 500 kOhms
Power (W) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Square - 0.375" x 0.375" Face x 0.375" H (9.53mm x 9.53mm x 9.53mm)
Family Part Number 3386W
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 736442-3386W-1-504LF
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3386W-1-504LF CAD Model

Description

The Bourns Inc. 736442-3386W-1-504LF is a potentiometer.

  • Packaging: tube
  • Termination Style: PC pins
  • Mounting Style: through-hole
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 1
  • Adjustment Type: side adjustment
  • Resistive Material: cermet
  • Resistance: 500 kOhms
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 100
