Same model may have multiple batches, images only for reference.

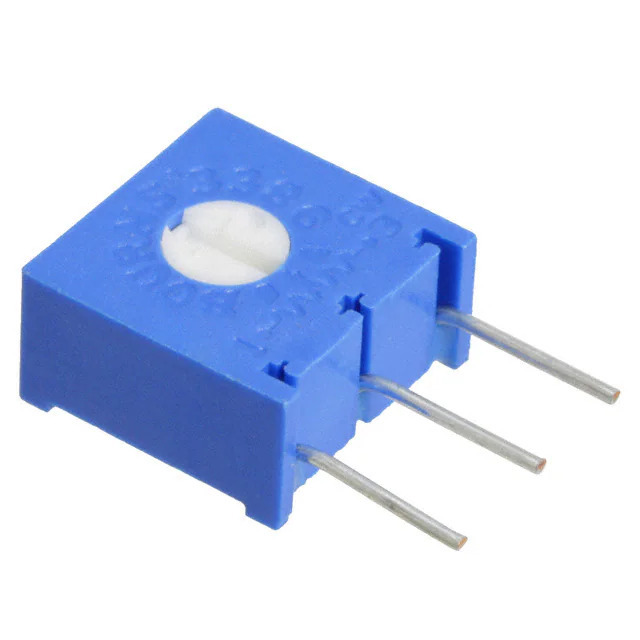

3386S-1-504LF Bourns Inc.
Same model may have multiple batches, images only for reference.

3386S-1-504LF

Part No 3386S-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.5W PC PIN SIDE / 500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3386S-1-504LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3386 - Sealed
Package Tube
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386S
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1354432-3386S-1-504LF
Ultra Librarian 3D Model Ultra Librarian 3386S-1-504LF CAD Model

Description

The Bourns Inc. 3386S-1-504LF is a trimmer potentiometer from the Trimpot® 3386 - Sealed series.

  • Resistance: 500 kOhms
  • Power Rating: 0.5W (1/2W)
  • Size: 0.375" x 0.375" face (9.53mm x 9.53mm)
  • Mounting Type: Through Hole
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Product Status: Active
  • REACH Status: Unaffected
