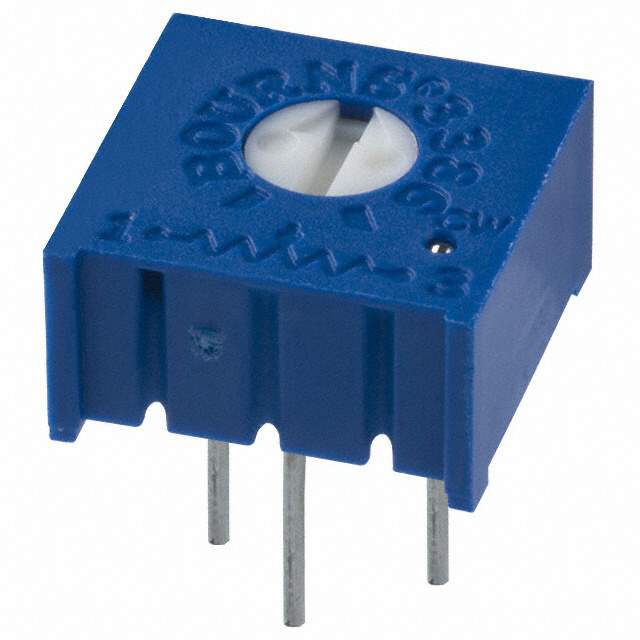

Same model may have multiple batches, images only for reference.

3386P-1-564LF

Name: 3386P-1-564LF
Brand: Bourns Inc.
SKU: 1223111
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3386P-1-564LF
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 560K OHM 0.5W PC PIN TOP / 560 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	3386P-1-564LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3386 - Sealed
Package	Tube
Resistance	560 kOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number	3386P
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Standard Package	100
Win Source Part Number	1223111-3386P-1-564LF
Ultra Librarian 3D Model	Ultra Librarian 3386P-1-564LF CAD Model

Description

The Trimpot® 3386 - Sealed potentiometer is a top adjustment type component designed with a resistive material of cermet.

Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Power Rating: 0.5W
Number of Turns: 1
Package: Tube
Standard Package: 100
Resistance: 560 kOhms
Mounting Type: Through-Hole
Dimension: Square, with a 0.375" x 0.375" face (9.53mm x 9.53mm)
REACH: Affected
ECCN: EAR99
HTSUS: 8533.40
Manufacturer: Bourns Inc.
