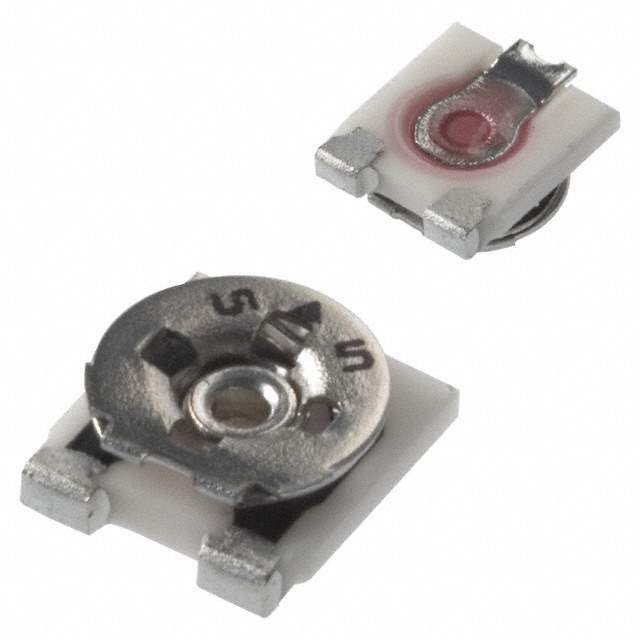

3364W-1-103E

Part No 3364W-1-103E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 10K Ohm 25% 0.2W(1/5W) 1(Elec)/1(Mech)Turns 3.8mm (3.8 X 4.5 X 1.5mm) SMD T/R / TRIMMER 10K OHM 0.2W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance (Ohms) 10k
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.177" x 0.150" Face x 0.059" H (4.50mm x 3.80mm x 1.50mm)
Win Source Part Number 126551-3364W-1-103E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name 3364
Introduction Date March 15, 2001
ECCN EAR99
Country of Origin United Kingdom
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 3364W-1-103E CAD Model

Description

Product Description

The 3364W-1-103E is a versatile cermet trimmer potentiometer designed to offer excellent performance in electronic circuits requiring precise resistance adjustments. Its multi-turn feature ensures fine-tuning ability, making it indispensable for high-end electronic designs.

Features and Benefits

  • Enhanced Stability: Ensures consistent performance over time with minimal drift.
  • Large Adjustment Range: Facilitates broad resistance tuning applications.
  • Compact Size: Fits seamlessly into space-constrained electronic setups.
  • High Reliability: Engineered for longevity and sustained accuracy under various conditions.

Applications

  • Medical instruments
  • Aerospace electronics
  • Test and measurement equipment
  • Laboratory instrumentation

Additional Details

The 3364W-1-103E is the perfect choice for applications demanding unwavering precision and reliability, making it a preferred selection in the fields of medical and aerospace technologies.
