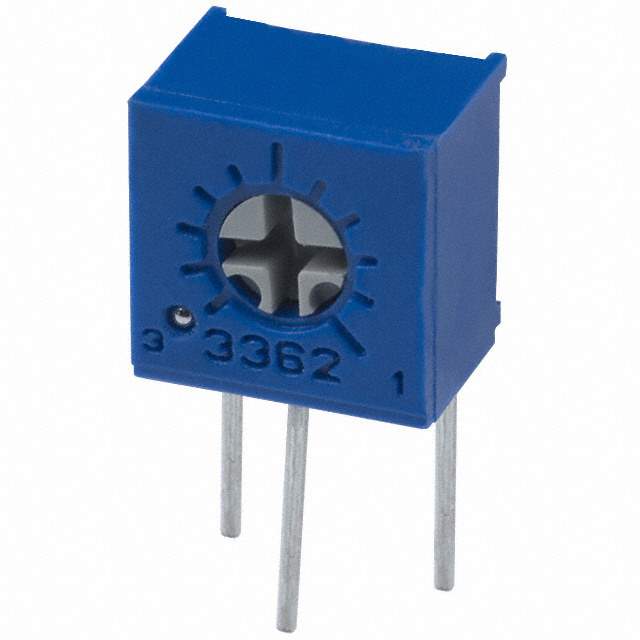

The 3362W-1-504LF is a 3/8 inch square multi-turn trimming potentiometer manufactured by Bourns Inc. It is designed for applications requiring precise resistance adjustments in electronic circuits. This potentiometer offers a reliable and stable performance, making it suitable for various calibration and control applications.

Applications

• Calibration of test and measurement equipment
• Adjustment of sensor output signals
• Control of voltage dividers in circuits
• Fine-tuning of audio equipment
• Used in precision power supplies

Features

• 3/8 inch square size
• Multi-turn adjustment for fine-tuning
• Through-hole mounting
• Resistance value of 500k ohms
• Sealed construction

Benefits

• High precision and accuracy in resistance adjustment
• Excellent stability for consistent performance
• Durable construction ensures long-term reliability
• Compact size allows for use in space-constrained applications
• RoHS compliant, making it environmentally friendly

Additional Details

The 3362W-1-504LF has a resistance tolerance of ±10%. Its power rating is 0.5W at 70°C. The operating temperature range is -55°C to +125°C. The temperature coefficient is ±100 ppm/°C. The multi-turn design provides high resolution, enabling precise adjustments. The sealed construction protects the potentiometer from dust, moisture, and other contaminants, ensuring reliable operation in various environmental conditions. This component is commonly used in applications where accurate and stable resistance adjustments are required, such as in calibration equipment, sensor circuits, and audio devices. It is also used in industrial control systems and power supplies. The RoHS compliance ensures that the product meets environmental standards for hazardous substances.
