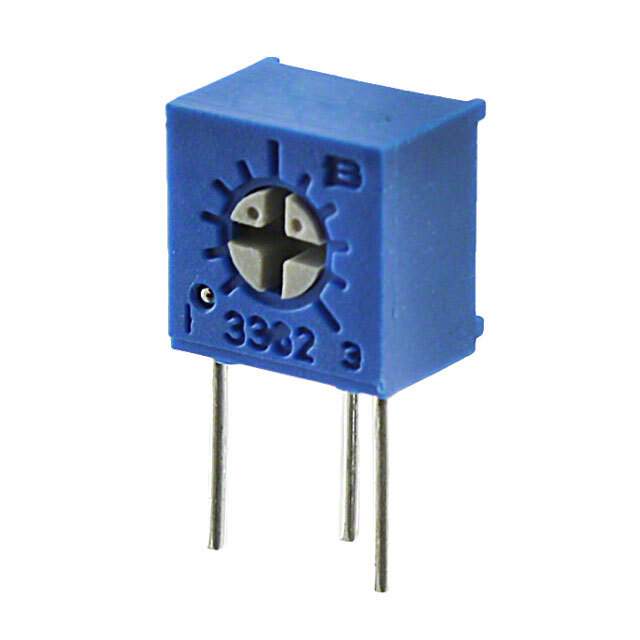

3362S-1-504LF Real Image
Same model may have multiple batches, images only for reference.

3362S-1-504LF

Part No 3362S-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.5W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Tube
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.275" x 0.260" Face x 0.275" H (6.99mm x 6.60mm x 6.99mm)
Part Number Series 3362S
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809391-3362S-1-504LF
Ultra Librarian 3D Model Ultra Librarian 3362S-1-504LF CAD Model

Description

The Bourns Inc. 809391-3362S-1-504LF is a side adjustment potentiometer with a resistive material of cermet.

  • Power Rating: 0.5W
  • Tolerance: ±10 percent
  • Number of Turns: 1
  • Resistance: 500 kOhms
  • Popularity: Medium
  • Supply and Demand Status: Limited
