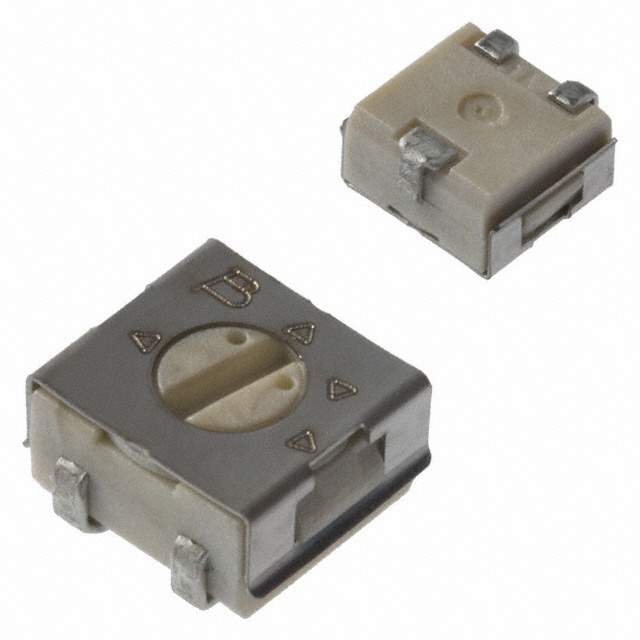

3314J-1-202E

Part No 3314J-1-202E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 2k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 006092-3314J-1-202E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3314J-1-202E CAD Model

Description

3314J-1-202E from Bourns Inc. is a trimmer potentiometer designed for circuit calibration, fine adjustment, and board-level tuning in electronic assemblies. Components in this category are commonly used where engineers need to set or trim analog parameters during production, service, or field calibration, such as signal conditioning, control loops, sensing interfaces, and power-related circuits. Bourns trimmers are widely recognized for compact integration and practical adjustability in industrial and commercial electronics. For procurement and design planning, this part is best evaluated with current manufacturer documentation because the lifecycle status provided here is unknown. RoHS compliance information is also not available from the input and should be confirmed directly through the latest datasheet, declaration, or manufacturer support channel. For engineers managing ongoing builds, repairs, or approved vendor lists, 3314J-1-202E may be relevant where stable trim functionality and established supplier support are important, but qualification should always include verification of compliance, availability, and revision-specific details.
