Same model may have multiple batches, images only for reference.

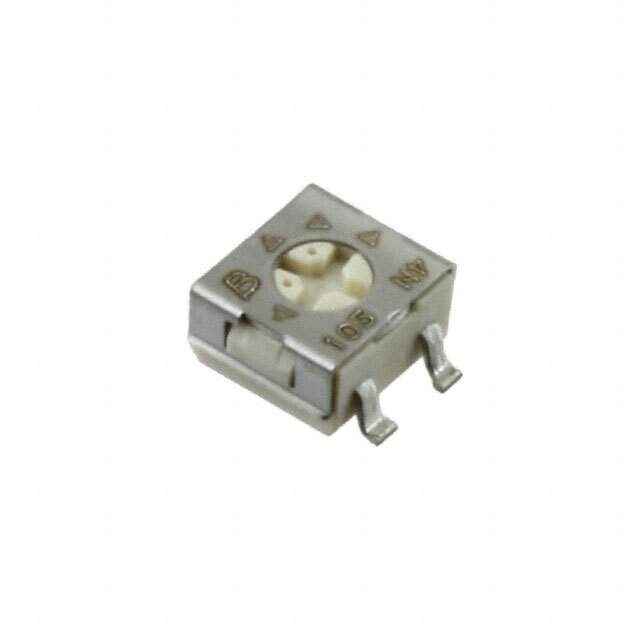

3314G-2-503E Real Image
Same model may have multiple batches, images only for reference.

3314G-2-503E

Part No 3314G-2-503E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W SMD
Datasheet
3314G-2-503E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 50k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 1005077-3314G-2-503E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3314G-2-503E CAD Model

Description

The component is a square-shaped potentiometer from Bourns Inc.

  • Face Dimension: 0.177" x 0.177"
  • Height: 0.100" (4.50mm x 4.50mm x 2.55mm)
  • Resistance: 50k Ohms
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Turns: One Turn
  • Adjustment: Top Adjustment
  • Resistive Material: Cermet
  • Category: Potentiometers, Variable Resistors
  • Status: Active
  • Packaging: Reel-TR
  • Termination Style: Gull-Wing
  • Supply and Demand Status: Balance
