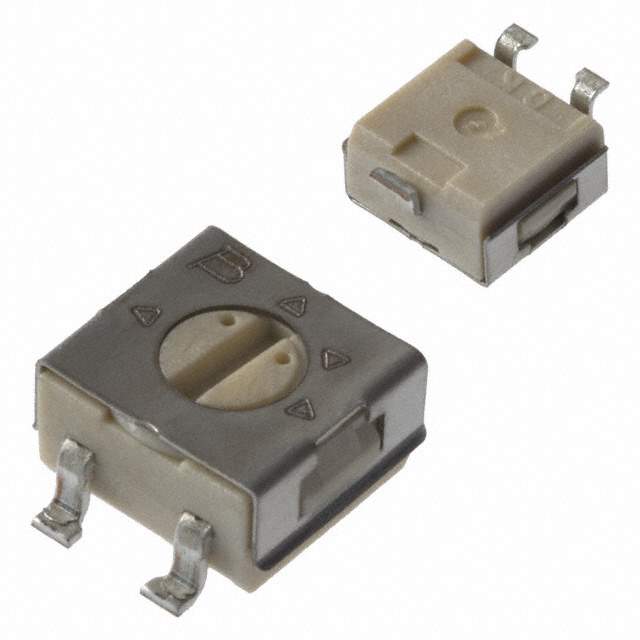

3314G-1-502E

Part No 3314G-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 083928-3314G-1-502E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3314G-1-502E CAD Model

Description

Description

The 3314G-1-502E potentiometer is crafted for precise control in a variety of electronic applications. Its high accuracy and durability make it suitable for demanding uses, including those in advanced technology fields.

Applications/Projects

  • Consumer electronics
  • Precision lighting controls
  • Instrumentation panels
  • Robotics and automation

Features and Benefits

  • High Accuracy: Provides exact resistance values for precise control.
  • Longevity: Long operational life due to superior materials.
  • Compact and Efficient: Allows for seamless integration into complex circuits.

Additional Details

Designed for high-precision tasks, this potentiometer offers a reliable solution for both traditional and modern electronic systems.
