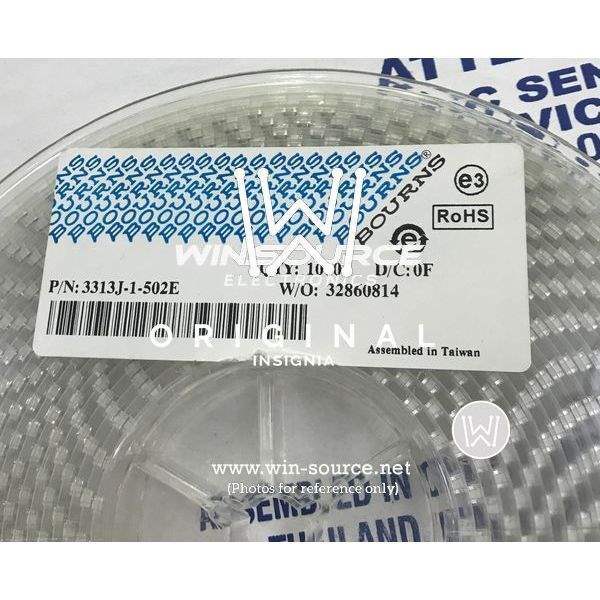

3313J-1-502E Real Image 3313J-1-502E label picture
Same model may have multiple batches, images only for reference.
3313J-1-502E Real Image 3313J-1-502E label picture
3313J-1-502E Real Image 3313J-1-502E label picture
Same model may have multiple batches, images only for reference.

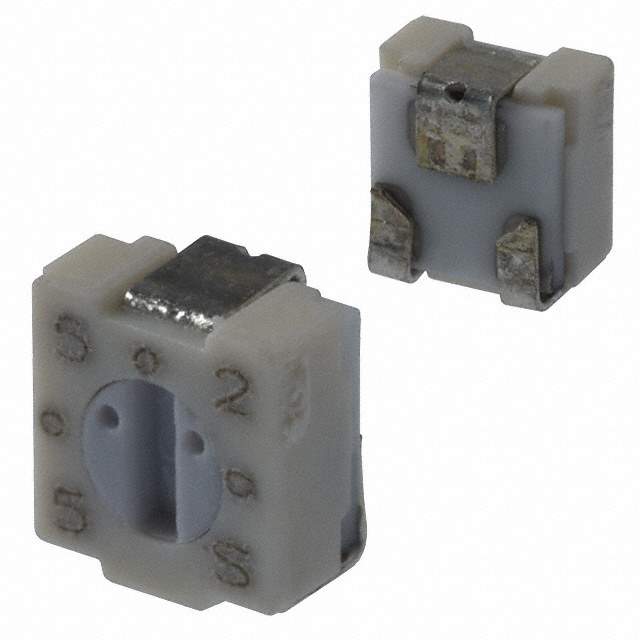

3313J-1-502E

Part No 3313J-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.125W SMD
Datasheet
3313J-1-502E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.138" x 0.126" Face x 0.087" H (3.50mm x 3.20mm x 2.20mm)
Win Source Part Number 006074-3313J-1-502E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3313J-1-502E CAD Model

Description

3313J-1-502E Potentiometer

The 3313J-1-502E offers stability and performance for tuning and resistance adjustment applications.

  • Applications:
    • Telecommunications equipment
    • Medical devices
    • Automotive electronics
  • Features and Benefits:
    • Reliability in harsh environments
    • Efficient size and form factor
    • Minimal impact on surrounding components
  • Additional Details:
    • Resistance Value: 5k ohms
    • Tolerance: ±10%
    • Temperature Coefficient: ±100 ppm/°C
