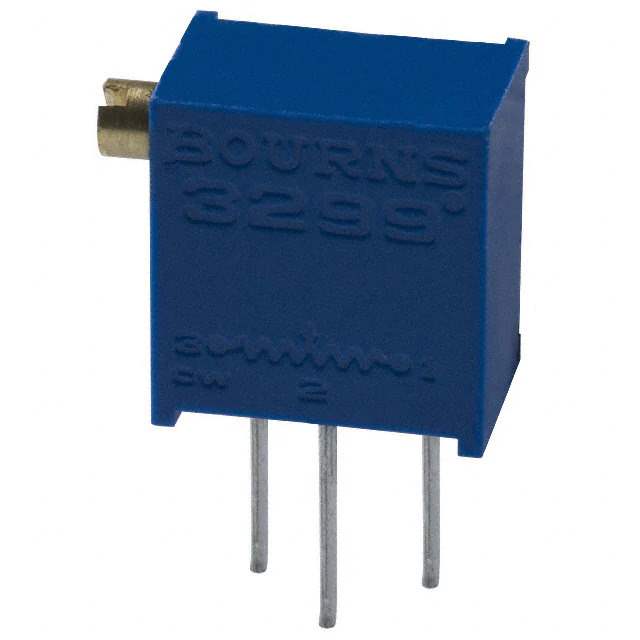

3299Z-1-104

Part No 3299Z-1-104
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100KOHM 0.5W PC PIN SIDE / 100 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3299 - Sealed
Package Tube
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.395" x 0.240" Face (10.03mm x 6.10mm)
Base Product Number 3299Z
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855683-3299Z-1-104
Ultra Librarian 3D Model Ultra Librarian 3299Z-1-104 CAD Model

Description

The Bourns Inc. 3299Z-1-104 is a trimmer potentiometer with a resistance of 100 kOhms.

  • Adjustment Type: Side
  • Resistive Material: Cermet
  • Resistance: 100 kOhms
  • Power (Watts): 0.5W (1/2W)
  • Tolerance: ±10%
  • Number of Turns: 25
  • Size / Dimension: 0.395" x 0.240" (10.03mm x 6.10mm)
  • Termination Style: PC Pins
  • Package: Tube
  • Standard Package: 100 pcs
  • Series: Trimpot® 3299 - Sealed
  • Application: Precise resistance adjustment
