Same model may have multiple batches, images only for reference.

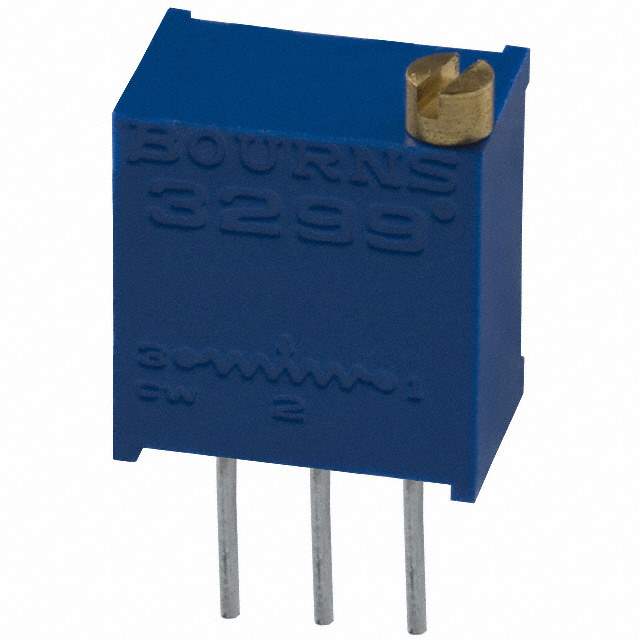

3299W-1-103LF Real Image
Same model may have multiple batches, images only for reference.

3299W-1-103LF

Part No 3299W-1-103LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 3/8 Square Trimming Potentiometer | TRIMMER 10K OHM 0.5W PC PIN TOP
Datasheet
3299W-1-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 10 kOhms
Power (W) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Rectangular - 0.375" x 0.240" Face x 0.395" H (9.53mm x 6.10mm x 10.03mm)
Family Part Number 3299W
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1128184-3299W-1-103LF
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3299W-1-103LF CAD Model

Description

The Bourns Inc. 3299W-1-103LF is a through-hole potentiometer with a resistance of 10 kOhms and a tolerance of ±10%.

  • Power Rating: 0.5W (1/2W)
  • Resistive Material: Cermet
  • Turns: 25
  • Adjustment: Top
  • Shape: Rectangular
  • Face Dimension: 0.375" x 0.240"
  • Height: 0.395" (9.53mm x 6.10mm x 10.03mm)
  • Temperature Coefficient: ±100ppm/°C
  • Applications: Industrial, consumer electronics, portable devices, and power management
  • Manufacturer: Bourns Inc.
