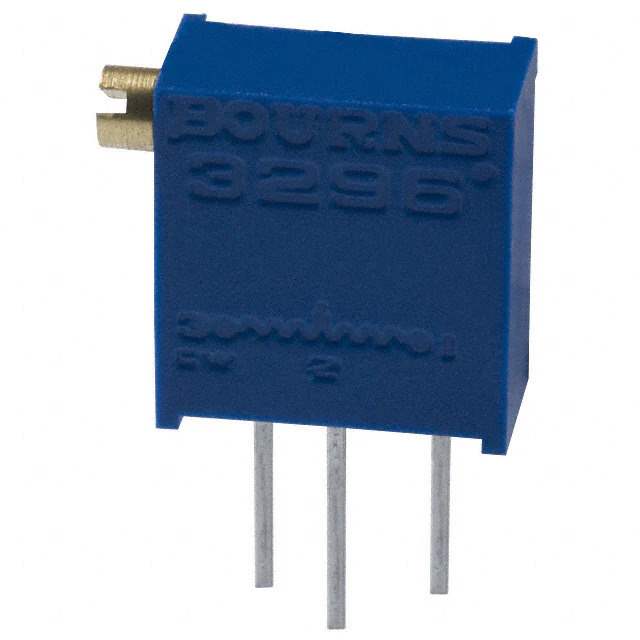

Same model may have multiple batches, images only for reference.

3296Z-1-501LF

Name: 3296Z-1-501LF
Brand: Bourns Inc.
SKU: 855679
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3296Z-1-501LF
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 500 OHM 0.5W PC PIN SIDE / 500 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
Datasheet	3296Z-1-501LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3296 - Sealed
Package	Tube
Product Status	Active
Resistance	500 Ohms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	25
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Size / Dimension	Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm)
Base Product Number	3296Z
Standard Package	100 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
California Prop 65	Warning Information
Win Source Part Number	855679-3296Z-1-501LF
Ultra Librarian 3D Model	Ultra Librarian 3296Z-1-501LF CAD Model

Alternative Products

Description

The 3296Z-1-501LF is a trimmer potentiometer from Bourns Inc.

Series: Trimpot® 3296 - Sealed
Termination Style: PC pin
Package: Tube
Standard Package Quantity: 100 pieces
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Power Rating: 0.5W (1/2W)
Number of Turns: 25
Adjustment: Side
Resistive Material: Cermet
Resistance: 500 ohms
Mounting: Through-hole
Temperature Range: -40°C to 125°C
ECCN: EAR99
Product Status: Active
