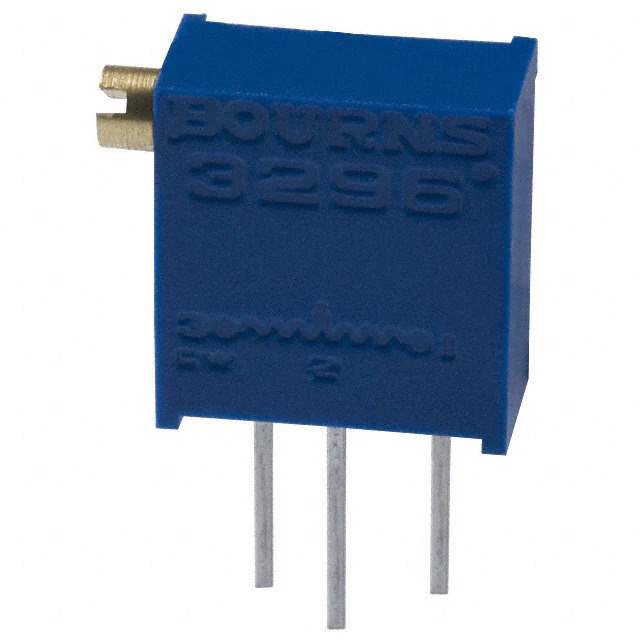

3296Z-1-104LF Real Image
Same model may have multiple batches, images only for reference.

3296Z-1-104LF

Part No 3296Z-1-104LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100KOHM 0.5W PC PIN SIDE / 100 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
Datasheet
3296Z-1-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3296 - Sealed
Package Tube
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm)
Base Product Number 3296Z
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855676-3296Z-1-104LF
Ultra Librarian 3D Model Ultra Librarian 3296Z-1-104LF CAD Model

Description

The Trimpot 3296 is a sealed potentiometer designed for use in various electronic applications.

  • Size: 0.395" x 0.190"
  • Power Rating: 0.5W
  • Adjustment: Side
  • Resistive Material: Cermet
  • Resistance: 100 kOhms
  • Tolerance: ±10%
  • Mounting: Through-hole
  • Termination: PC pins
  • Series: Trimpot 3296
  • Manufacturer: Bourns Inc.
  • Package: 100 pcs
  • Status: Active
  • California Prop 65: Compliant, with warning
