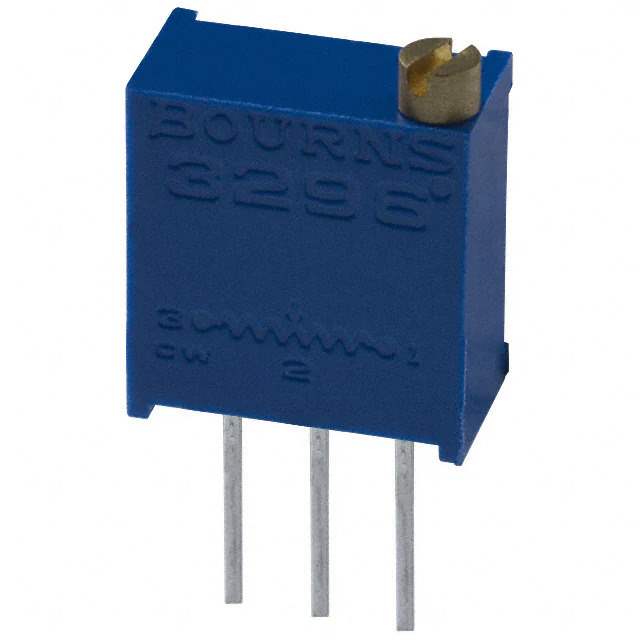

3296W-1-201 Real Image
Same model may have multiple batches, images only for reference.

3296W-1-201

Part No 3296W-1-201
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.5W PC PIN TOP
Datasheet
3296W-1-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3296 - Sealed
Package Tube
Product Status Active
Resistance 200 Ohms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm)
Base Product Number 3296W
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855668-3296W-1-201
Ultra Librarian 3D Model Ultra Librarian 3296W-1-201 CAD Model

Description

The Trimpot 3296W-1-201 is a sealed potentiometer with a resistance of 200 Ohms.

  • Series: Trimpot 3296
  • Manufacturer: Bourns Inc.
  • Size / Dimension: 0.375" x 0.190" (9.53mm x 4.83mm)
  • Termination Style: PC Pins
  • Adjustment Type: Top
  • Number of Turns: 25
  • Resistive Material: Cermet
  • Power (Watts): 0.5W (1/2W)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Through Hole
  • Package: Tube
  • Standard Package: 100 pcs
  • Application: Various applications in the field of potentiometers and variable resistors
  • REACH: Affected
  • California Prop 65: Warning
