Same model may have multiple batches, images only for reference.

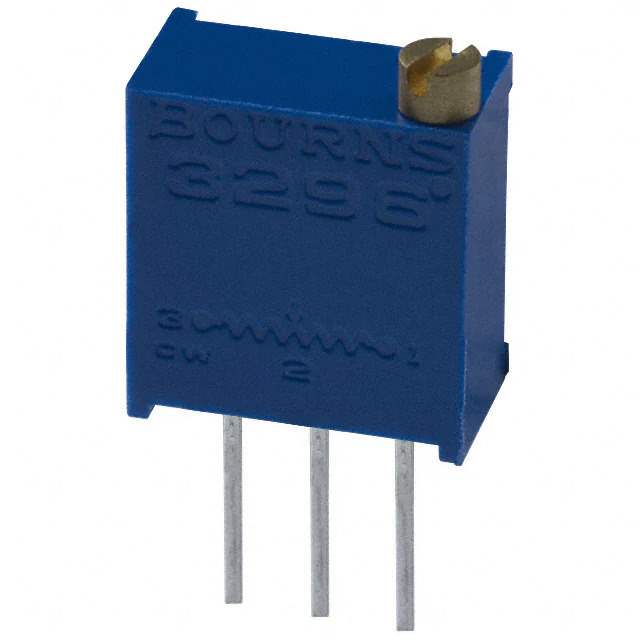

3296W-1-104 Real Image
Same model may have multiple batches, images only for reference.

3296W-1-104

Part No 3296W-1-104
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.5W PC PIN TOP
Datasheet
3296W-1-104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3296 - Sealed
Package Tube
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm)
Base Product Number 3296W
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855667-3296W-1-104
Ultra Librarian 3D Model Ultra Librarian 3296W-1-104 CAD Model

Description

The 855667-3296W-1-104 is a trimmer potentiometer from the Trimpot® 3296 - Sealed series.

  • Adjustment Type: Top
  • Size / Dimension: 0.375" x 0.190" face (9.53mm x 4.83mm)
  • Resistance: 100 kOhms
  • Tolerance: ±10%
  • Power (Watts): 0.5W (1/2W)
  • Number of Turns: 25
  • Resistive Material: Cermet
  • Mounting Type: Through Hole
  • Package: Tube
  • Application: Various applications that require adjustable resistance
  • Manufacturer: Bourns Inc.
  • Standard Package: 50 pcs
