Same model may have multiple batches, images only for reference.

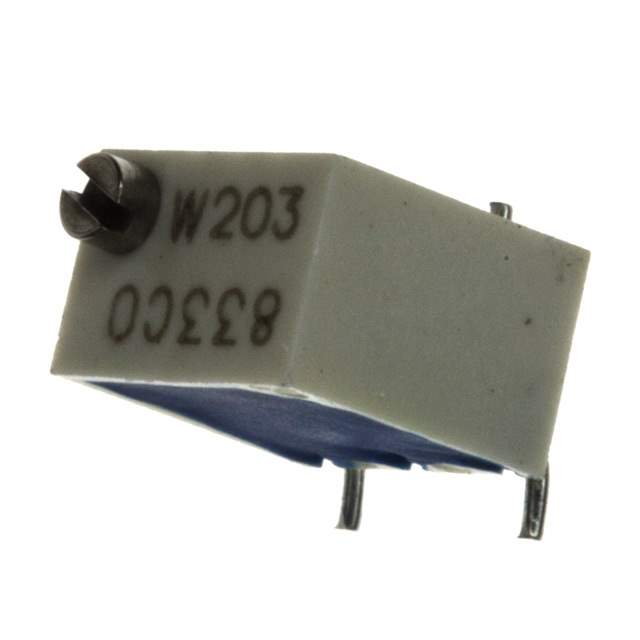

3269W-1-502 Real Image
Same model may have multiple batches, images only for reference.

3269W-1-502

Part No 3269W-1-502
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
3269W-1-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.250" x 0.170" Face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
Win Source Part Number 075703-3269W-1-502
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3269W-1-502 CAD Model

Description

Features and Benefits

  • Wide resistance range for various applications
  • Compact design suitable for tight spaces
  • High reliability and durability
  • Low temperature coefficient

Applications

  • Instrumentation Amplifiers
  • Precision Control Systems
  • Signal Processing Circuits

Additional Details

The 3269W-1-502 potentiometer is ideal for applications requiring precise resistance adjustments. Its robust construction ensures long-term stability, making it perfect for professional and industrial environments where accuracy is paramount.
