Same model may have multiple batches, images only for reference.

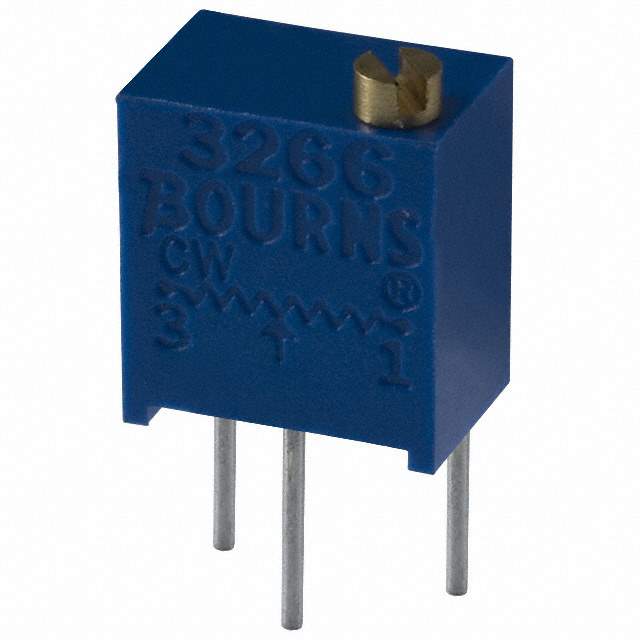

3266W-1-203LF Real Image
Same model may have multiple batches, images only for reference.

3266W-1-203LF

Part No 3266W-1-203LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 20K Ohm 10% 0.25W(1/4W) 12(Elec)Turn 1.78mm (6.71 X 4.5 X 8.26mm) Pin Thru-Hole Tube / TRIMMER 20K OHM 0.25W PC PIN
Datasheet
3266W-1-203LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 20k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Win Source Part Number 1005008-3266W-1-203LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name 3266
Introduction Date May 18, 2004
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3266W-1-203LF CAD Model

Description

The Bourns Inc. 1005008-3266W-1-203LF is a potentiometer variable resistor with a resistance of 20k ohms.

  • Resistance: 20k ohms
  • Power Rating: 0.25 watts
  • Tolerance: ±10 percent
  • Adjustment: Top
  • Resistive Material: Cermet
  • Turns: 12
  • Mounting: Through-Hole
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Popularity: High
  • Supply and Demand Status: Balanced
