Same model may have multiple batches, images only for reference.

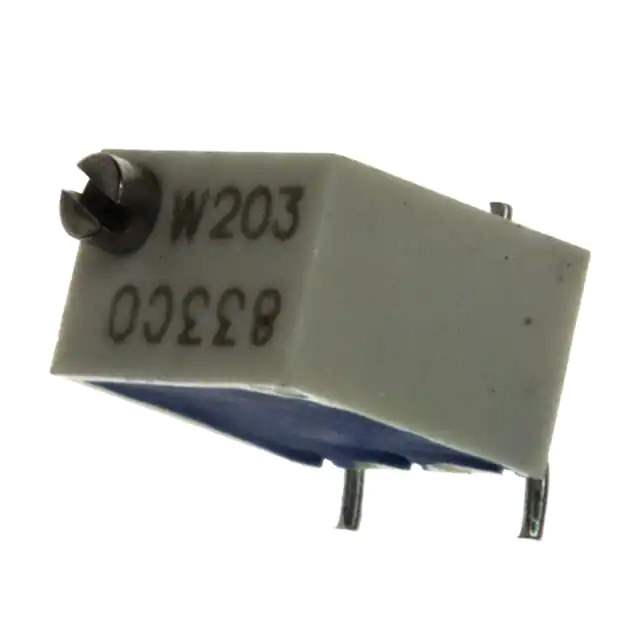

3269W-1-103LF Real Image
Same model may have multiple batches, images only for reference.

3269W-1-103LF

Part No 3269W-1-103LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 10K OHM 0.25W GW TOP ADJ / 10 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet
3269W-1-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3269 - Sealed
Package Tube
Product Status Active
Resistance 10 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3269W
Standard Package 100 pcs
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 906559-3269W-1-103LF
Ultra Librarian 3D Model Ultra Librarian 3269W-1-103LF CAD Model

Description

The 906559-3269W-1-103LF is a trimmer potentiometer from Bourns Inc.

  • Series: Trimpot® 3269 - Sealed
  • Resistance: 10 kOhms
  • Tolerance: ±10%
  • Mounting: surface mount
  • Termination Style: gull wing
  • Size: rectangular, measuring 0.250" x 0.170" face (6.35mm x 4.32mm)
  • Power Rating: 0.25W (1/4W)
  • Turns: 12 turns
  • Resistive Material: cermet
  • REACH: compliant
  • California Prop 65: warning information label
  • Applications: audio equipment, instrumentation, and industrial controls
