Same model may have multiple batches, images only for reference.

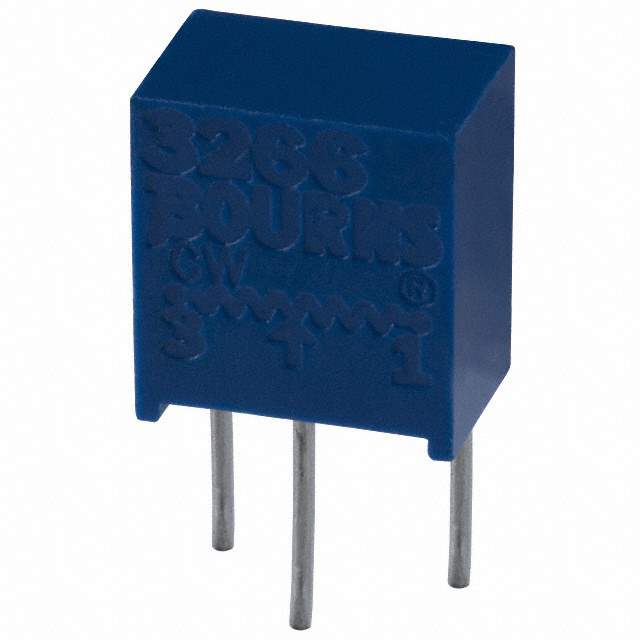

3266X-1-104LF Real Image
Same model may have multiple batches, images only for reference.

3266X-1-104LF

Part No 3266X-1-104LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.25W PC PIN
Datasheet
3266X-1-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3266 - Sealed
Packaging Tube
Resistance (Ohms) 100k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Win Source Part Number 763199-3266X-1-104LF
Family Name 3266
Introduction Date May 18, 2004
ECCN EAR99
Country of Origin Hong Kong
Halogen Free Not Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3266X-1-104LF CAD Model

Description

The Bourns Inc. electronic component is a limited supply product with medium popularity.

  • Supply and Demand: Limited
  • Popularity: Medium
  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 763199-3266X-1-104LF
  • Series: Trimpot 3266 - Sealed
  • Packaging: Tube
  • Termination Style: PC Pins
  • Mounting Type: Through Hole
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.25W, 1/4W
  • Resistance: 100k ohms
  • Turns: 12
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Family: 3266
  • Dimension: Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
