Same model may have multiple batches, images only for reference.

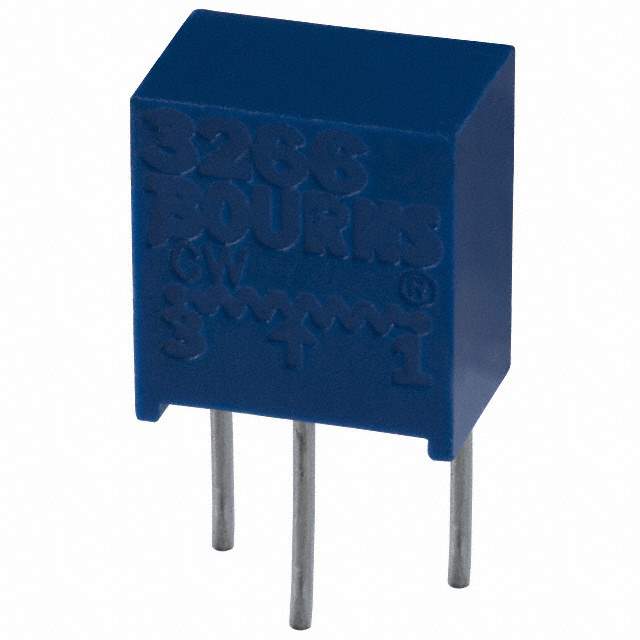

3266X-1-100LF Real Image
Same model may have multiple batches, images only for reference.

3266X-1-100LF

Part No 3266X-1-100LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 10 OHM 0.25W PC PIN
Datasheet
3266X-1-100LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3266 - Sealed
Packaging Tube
Resistance (Ohms) 10
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Win Source Part Number 763197-3266X-1-100LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3266
Introduction Date May 18, 2004
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3266X-1-100LF CAD Model

Description

The Bourns Inc. 763197-3266X-1-100LF trimpot is a variable resistor manufactured by Bourns Inc..

  • Resistance: 10 Ohms
  • Tolerance: ±10%
  • Resistive Material: Cermet
  • Power Rating: 0.25W
  • Dimension: 0.250 inches x 0.170 inches face x 0.270 inches H
  • Mounting Type: Through Hole
  • Number of Turns: 12
  • Adjustment Type: Side Adjustment
  • Packaging: Tube
  • Halogen Free: Yes
