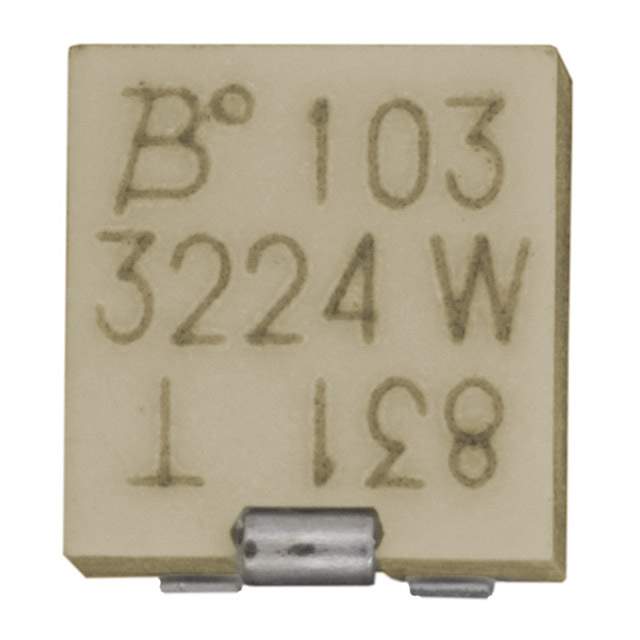

3224W-1-103E Bourns Inc. 3224W-1-103E Real Image 3224W-1-103E real image 3 3224W-1-103E label picture 3224W-1-103E real image 2 3224W-1-103E label picture 2
Same model may have multiple batches, images only for reference.
3224W-1-103E Bourns Inc. 3224W-1-103E Real Image 3224W-1-103E real image 3 3224W-1-103E label picture 3224W-1-103E real image 2 3224W-1-103E label picture 2
3224W-1-103E Bourns Inc. 3224W-1-103E Real Image 3224W-1-103E real image 3 3224W-1-103E label picture 3224W-1-103E real image 2 3224W-1-103E label picture 2
Same model may have multiple batches, images only for reference.

3224W-1-103E

Part No 3224W-1-103E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 10K OHM 0.25W SMD
Datasheet
3224W-1-103E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 10k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.138" Face x 0.209" H (4.80mm x 3.50mm x 5.30mm)
Win Source Part Number 006038-3224W-1-103E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management, Automotive
Family Name 3224
Introduction Date November 12, 2001
ECCN EAR99
Country of Origin Costa Rica, Italy
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 3224W-1-103E CAD Model

Description

Description

The 3224W-1-103E offers unparalleled precision in resistance tuning, tailored for complex electronic systems.

Features and Benefits

  • Enhanced thermal stability
  • Small footprint for efficient space utilization
  • Robust construction for high durability

Applications/Projects

  • Industrial automation
  • Aerospace technology
  • Consumer electronics

Additional Details

This component stands out for its precise resistance adjustment capabilities, making it indispensable for critical applications requiring consistent performance over time.
