Same model may have multiple batches, images only for reference.

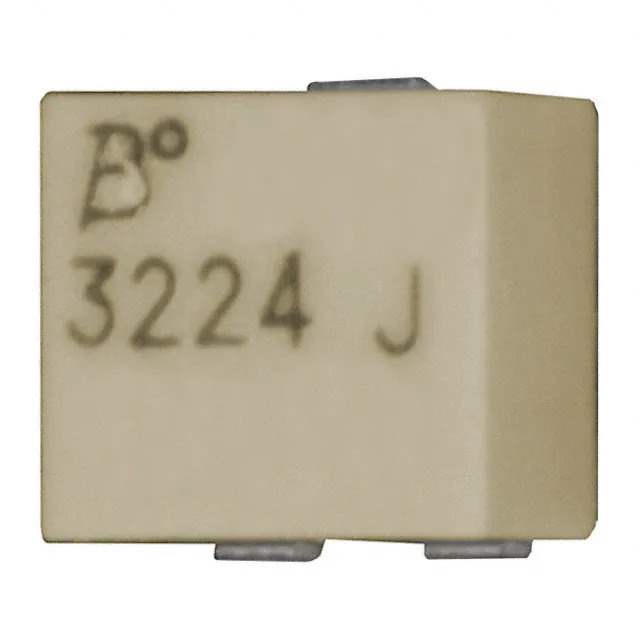

3224J-1-105E Real Image
Same model may have multiple batches, images only for reference.

3224J-1-105E

Part No 3224J-1-105E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.25W J LEAD SIDE / 1 MOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3224J-1-105E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3224 - Sealed
Package Tape & Reel
Product Status Active
Resistance 1 mOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm)
Base Product Number 3224J
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855642-3224J-1-105E
Ultra Librarian 3D Model Ultra Librarian 3224J-1-105E CAD Model

Description

The Trimpot® 3224 is a sealed potentiometer with a J Lead termination style.

  • Size: 0.181" x 0.138" face (4.60mm x 3.50mm)
  • Power Rating: 0.25W (1/4W)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12 Turns
  • Adjustment: Side Adjustment
  • Resistive Material: Cermet
  • Resistance: 1 mOhms
  • Mounting: Surface Mountable
  • Package: Tape & Reel
  • Pieces: 500 Pieces
  • Status: Active product
  • Manufacturer: Bourns Inc.
