Same model may have multiple batches, images only for reference.

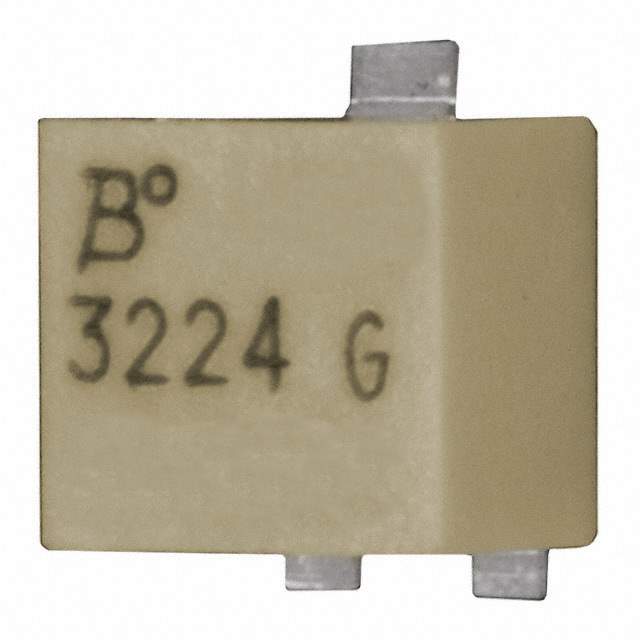

3224G-1-503E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-503E

Part No 3224G-1-503E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W SMD
Datasheet
3224G-1-503E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 50k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Win Source Part Number 1004975-3224G-1-503E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3224G-1-503E CAD Model

Description

The Bourns Inc. 3224G-1-503E potentiometer is a variable resistor with a resistance of 50k ohms and a tolerance of ±10%.

  • Manufacturer: Bourns Inc.
  • Resistance: 50k Ohms
  • Tolerance: ±10%
  • Power (Watts): 0.25W (1/4W)
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Number of Turns: 12
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Size / Dimension: 0.181" x 0.138" face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
  • Supply and Demand Status: balanced
