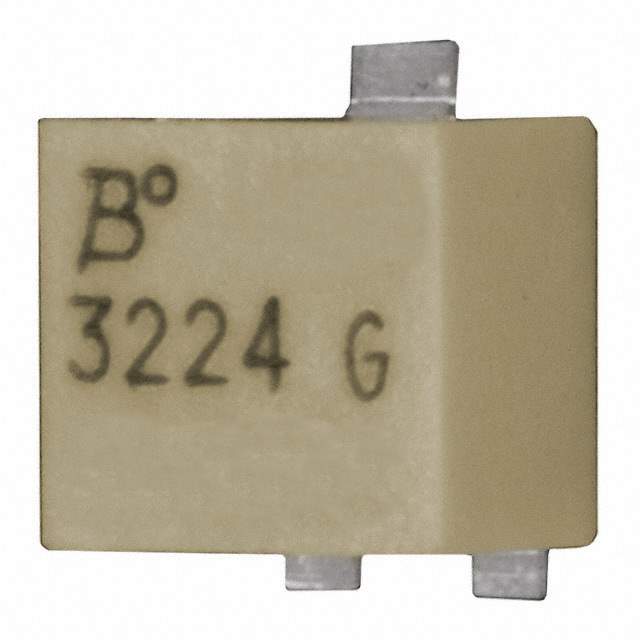

3224G-1-105E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-105E

Part No 3224G-1-105E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.25W SMD
Datasheet
3224G-1-105E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 1M
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Win Source Part Number 1004974-3224G-1-105E
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 3224G-1-105E CAD Model

Description

The Bourns 3224G-1-105E is a high-quality potentiometer that is designed for use in various electronic applications.

  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Termination Style: Gull-wing
  • Mounting: SMD
  • Adjustment: Side
  • Manufacturer: Bourns Inc
