Same model may have multiple batches, images only for reference.

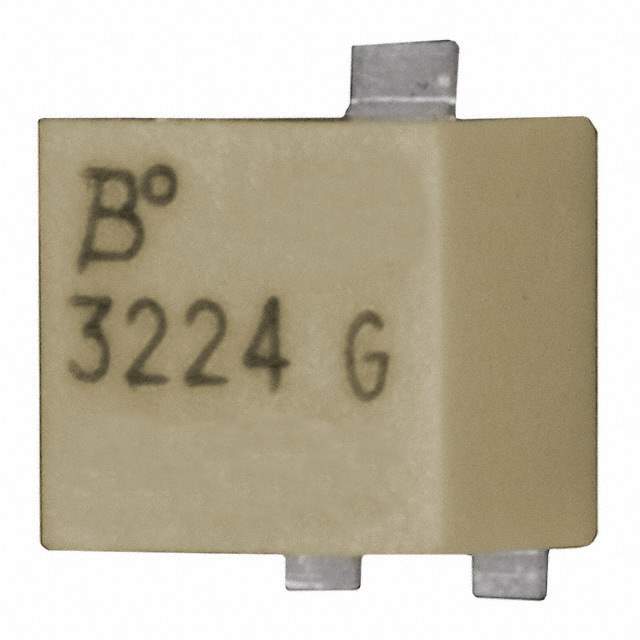

3224G-1-104E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-104E

Part No 3224G-1-104E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Design Kit Trimming Potentiometers | TRIMMER 100K OHM 0.25W GW SIDE
Datasheet
3224G-1-104E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 100 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Parts Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Family Part Number 3224G
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128120-3224G-1-104E
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3224G-1-104E CAD Model

Description

Bourns Inc. Potentiometer 3224G-1-104E is a surface mount device with a side adjustment feature.

  • Manufacturer: Bourns Inc.
  • Mounting Type: Surface Mount
  • Adjustment: Side Adjustment
  • Resistive Material: Cermet
  • Resistance: 100 kOhms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12
  • Shape: Rectangular
  • Face Dimension: 0.181" x 0.138"
  • Height: 0.154"
  • Power Rating: 0.25W
  • Application: Variable Resistors
