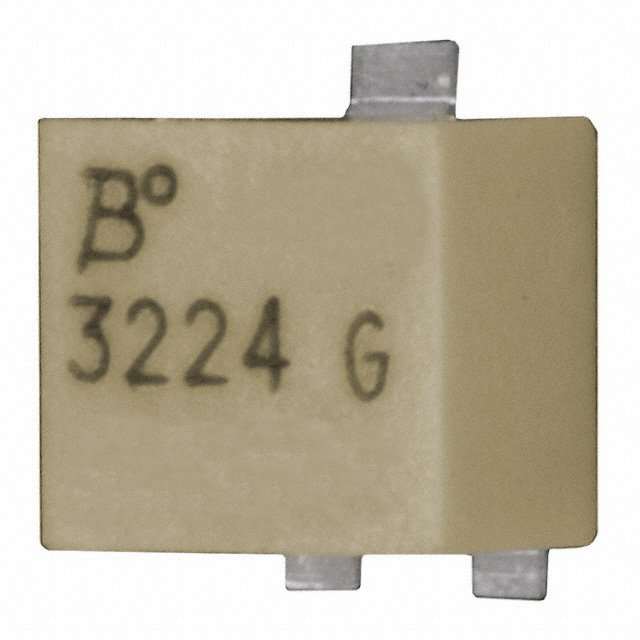

Same model may have multiple batches, images only for reference.
3223J-1-504E Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3223J-1-504E

Part No 3223J-1-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.125W J LEAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 500 kOhms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11.0
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.154\
Package Tape & Reel (TR);Cut Tape (CT);Reel
Supply and Demand Status Shortage
Win Source Part Number 1574502-3223J-1-504E
Ultra Librarian 3D Model Ultra Librarian 3223J-1-504E CAD Model

Description

N
