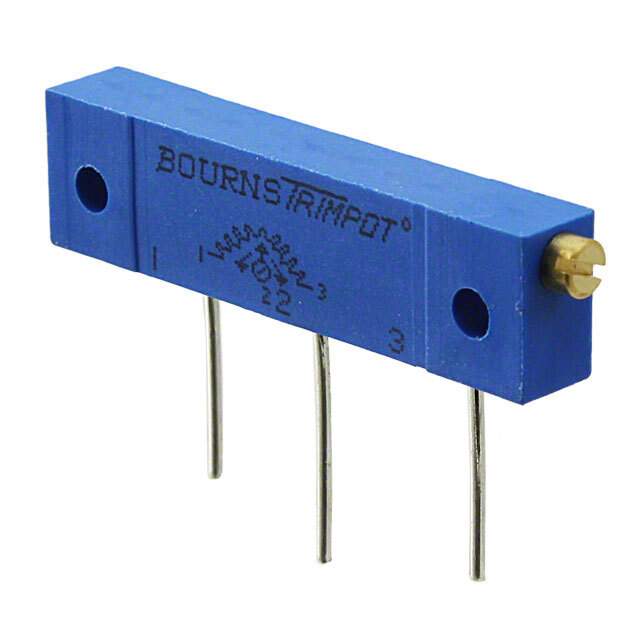

3059Y-1-201LF Real Image
Same model may have multiple batches, images only for reference.

3059Y-1-201LF

Part No 3059Y-1-201LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 1W PC PIN
Datasheet
3059Y-1-201LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3059 - Sealed
Packaging Tube
Resistance (Ohms) 200
Power (Watts) 1W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Chassis Mount
Termination Style PC Pins
Dimension Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)
Win Source Part Number 763083-3059Y-1-201LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3059
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3059Y-1-201LF CAD Model

Description

The Bourns Inc. Trimpot 3059 - Sealed with part number 763083-3059Y-1-201LF is a potentiometer from Bourns Inc.

  • Power Rating: 1W
  • Resistance: 200 Ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 22
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Categories: Potentiometers and Variable Resistors
  • Dimensions: 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)
  • Alternative Parts: PV22S201A01B00, PV22S201C01B00, PV22Y201C01B00
  • Introduction Date: September 25, 1997
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2027
  • Halogen Free: Yes
