Same model may have multiple batches, images only for reference.

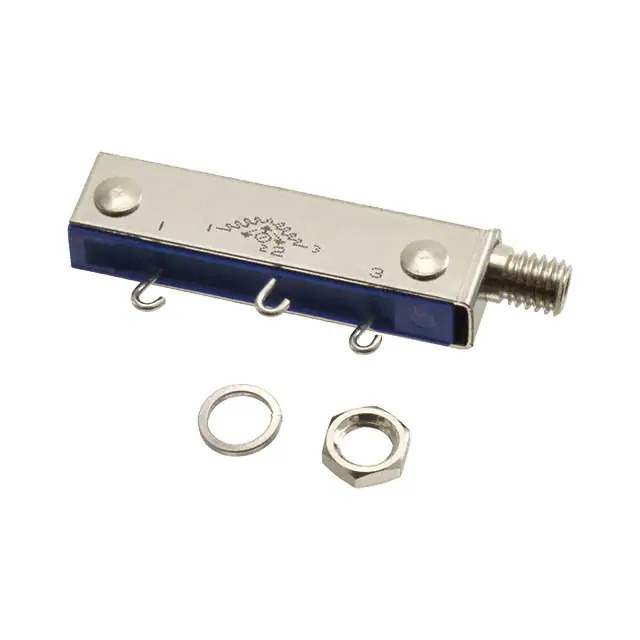

3059J-1-102MLF Real Image
Same model may have multiple batches, images only for reference.

3059J-1-102MLF

Part No 3059J-1-102MLF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 1W SLDR HOOK SIDE / 1 kOhms 1W Solder Hook Panel Mount Trimmer Potentiometer Cermet 22.0 Turn Side Adjustment
Datasheet
3059J-1-102MLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3059 - Sealed
Package Bulk
Product Status Active
Resistance 1 kOhms
Power (Watts) 1W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Panel Mount
Termination Style Solder Hook
Size / Dimension Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm)
Base Product Number 3059J
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 906511-3059J-1-102MLF
Ultra Librarian 3D Model Ultra Librarian 3059J-1-102MLF CAD Model

Description

The Trimpot® 3059 - Sealed series from Bourns Inc. is a trimmer potentiometer designed for use in various electronic applications.

  • Series: Trimpot® 3059 - Sealed
  • Manufacturer: Bourns Inc.
  • Power Rating: 1W
  • Resistance: 1k Ohms
  • Turns: 22
  • Adjustment: Side adjustment
  • Resistive Material: Cermet
  • Termination Style: Solder hook
  • Size: Rectangular 0.315" x 0.190" face
