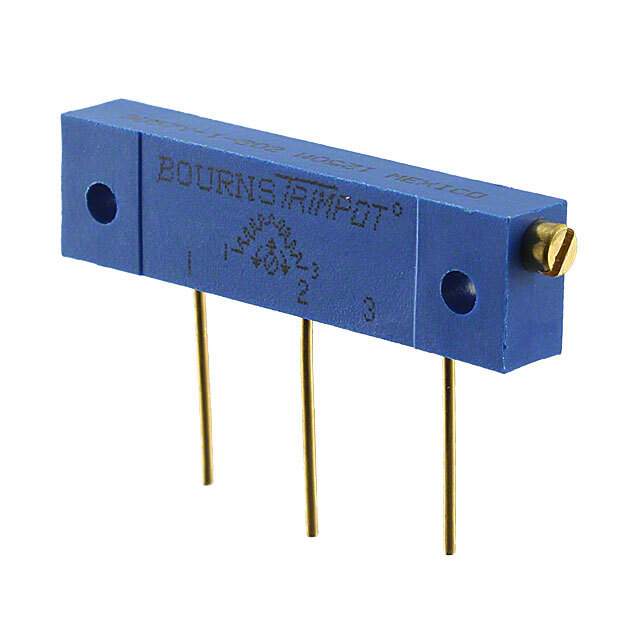

Same model may have multiple batches, images only for reference.

3057P-1-501

Name: 3057P-1-501
Brand: Bourns Inc.
SKU: 1017753
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3057P-1-501
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 500 OHM 1W PC PIN SIDE / 500 Ohms 1W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 22.0 Turn Side Adjustment
Datasheet	3057P-1-501 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3057 - Sealed
Package	Tube
Resistance	500 Ohms
Power (Watts)	1W
Tolerance	±5%
Temperature Coefficient	±50ppm/°C
Number of Turns	22
Adjustment Type	Side Adjustment
Resistive Material	Wirewound
Mounting Type	Chassis Mount
Termination Style	PC Pins
Dimension	Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm)
Base Product Number	3057P
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
Standard Package	20
Win Source Part Number	1017753-3057P-1-501
Ultra Librarian 3D Model	Ultra Librarian 3057P-1-501 CAD Model

Description

Trimpot 3057 - Sealed from Bourns Inc. is a series of potentiometers that provides superior performance and reliability. The 1017753-3057P-1-501 is a side adjustment potentiometer that is perfect for use in a wide range of electronic applications.

Resistance: 500 ohms
Tolerance: ±5%
Resistive Material: Wirewound
Temperature Coefficient: ±50ppm/°C
Power Rating: 1W
Number of Turns: 22
Termination Style: PC Pins
Face Dimension: Rectangular - 0.315" x 0.190"
Mounting Type: Chassis Mount
