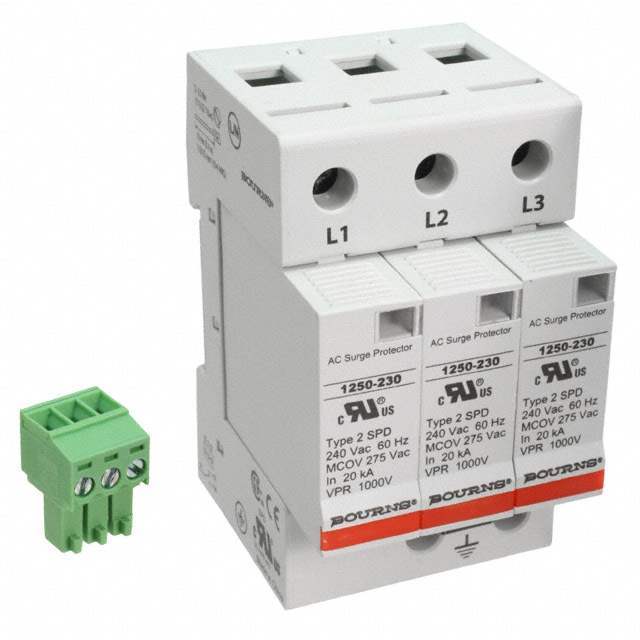

1250-3S-230 Bourns Inc.
Same model may have multiple batches, images only for reference.

1250-3S-230

Part No 1250-3S-230
Manufacturer Bourns Inc.
Catalog Surge Protection Devices (SPDs)
Description SPD TYPE 2/TYPE 4 275VAC MCOV
Datasheet
1250-3S-230 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310458-1250-3S-230
Manufacturer Bourns Inc.
Category Circuit Protection > Transient Voltage Suppressors (TVS) > Surge Protection Devices (SPDs)
Packaging Bulk
Part Status Active
Type Type 2, Type 4
Form Base + Module
Number of Poles 3
Voltage - Continuous Operating (Max) (MCOV) 275VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Voltage - Protection Rating (VPR) 1 kV
Voltage - Protection Level (VP) (2416) 1.25 kV
Operating Temperature -50°C ~ 85°C
Features Remote Signaling Contacts, Thermally Protected
Ultra Librarian 3D Model Ultra Librarian 1250-3S-230 CAD Model

Description

Features
● 50 kA max. discharge current rating
● Multi-pole uni-block design
● DIN Rail mountable
● UL 60691 compliant integrated thermal disconnect
● Visual fault indicator
● Remote signalling capability
